From Logs to Sticks Inside a Wooden Ice Cream Stick Production Line

The wooden ice cream stick making production line serves as a fully automated manufacturing system. It changes raw wood logs into smooth and uniform sticks. These sticks work well for ice cream, popsicles, and other frozen desserts. The line brings together advanced CNC rotary peeling, precise carved punching, careful drying, edge finishing, and several stages of quality inspection. In this way, it delivers high output along with good dimensional accuracy and hygiene standards.

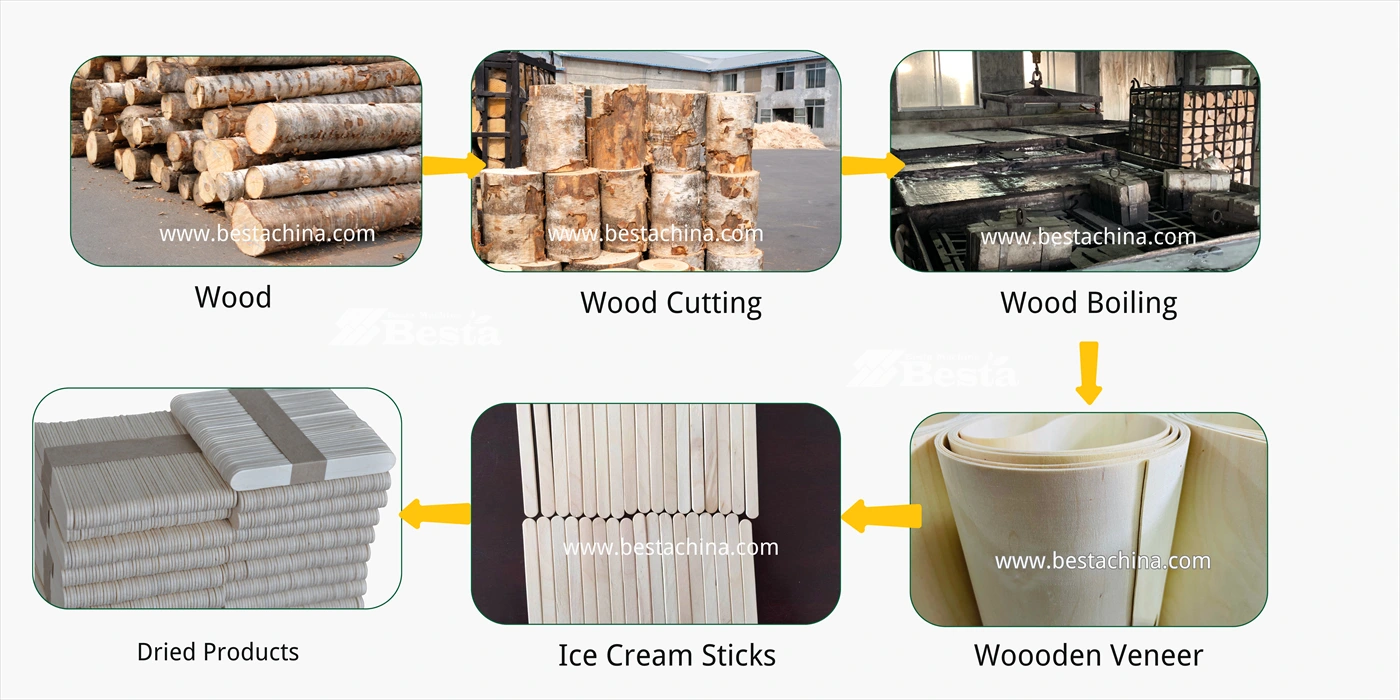

In a typical ice cream stick manufacturing process, birch or poplar logs pass through several steps. These include log preparation, veneer peeling, stick forming, drying and polishing, ordering, defect selection, chamfering, advanced polishing, visual inspection, and final bundling.

Standard sizes include 114mm ice cream sticks and 93mm wooden ice cream sticks. Interchangeable carved cutting blades decide the exact profiles. The entire wooden popsicle stick production line focuses on uniform veneer thickness, clean cuts, and precise moisture control. These elements help the sticks meet food-contact requirements.

Below is a detailed breakdown of the wooden ice cream stick making production line. It focuses on each key phase and the specialized machines involved.

Raw Material Preparation in Wooden Ice Cream Stick Making Production Line

Proper log preparation forms the foundation for efficiency and consistent quality in any wooden ice cream stick production line.

Wood Cutting Process in Wooden Ice Cream Stick Making Production Line

The process begins with AJD-2 Wood Cutting Machines. These machines cut full-length logs into shorter and uniform segments. Accurate initial cutting helps create consistent diameters and lengths. It also supports even veneer production and reduces waste throughout the ice cream stick manufacturing process.

Wood Boiling and Bark Removal Stage in Wooden Ice Cream Stick Making Production Line

Workers usually steam or boil the logs at 80–100°C for several hours. This step softens the fibers and loosens the bark. The thermal treatment makes the wood easier to work with and reduces surface defects. After boiling, mechanical bark removal creates clean log surfaces. These surfaces prepare the material well for rotary peeling in the wooden popsicle stick production line.

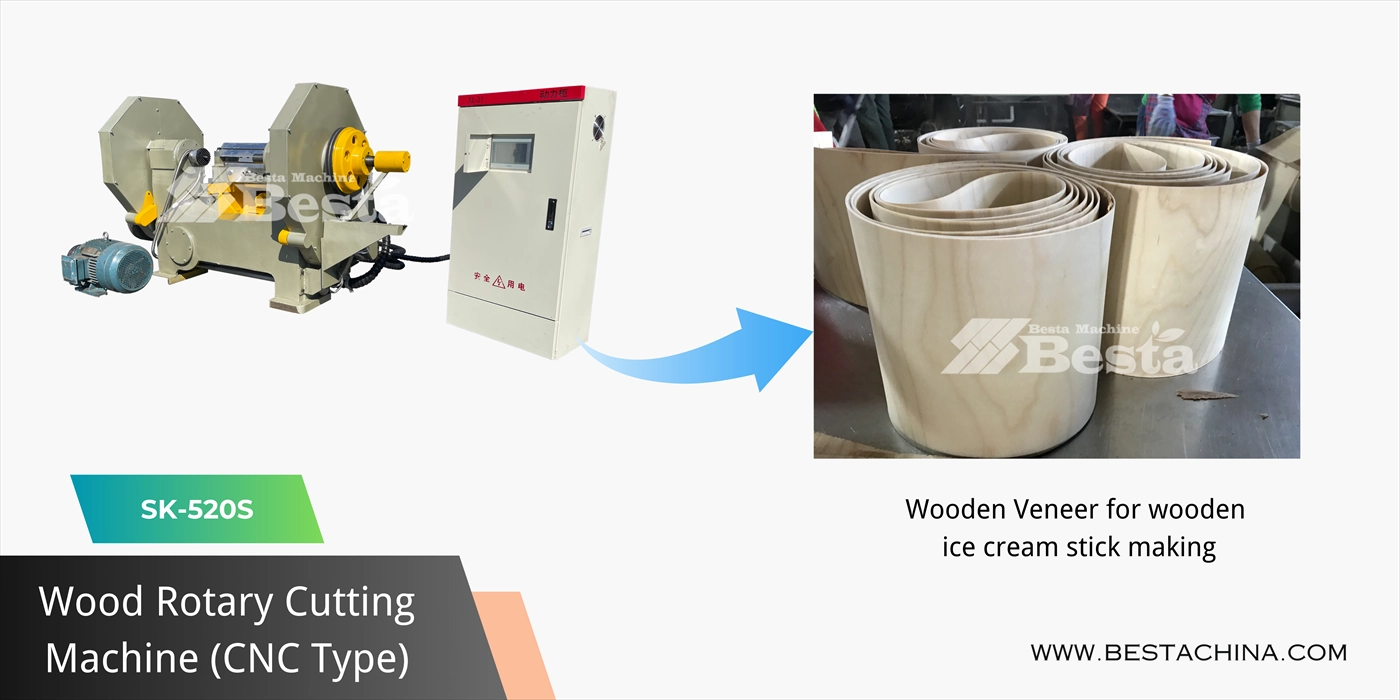

Veneer Production Using Wood Rotary Cutting Machine in Wooden Ice Cream Stick Making Production Line

The Wood Rotary Cutting Machine (CNC Type), model SK-520S, acts as the core equipment. It generates high-quality veneer in the wooden ice cream stick production line.

Key Features and Operation of SK-520S Wood Rotary Cutting Machine

This CNC servo-driven machine clamps log sections. The typical diameter range is 45mm–800mm. It rotates them against a precision knife to peel continuous veneer sheets. Operators can adjust veneer thickness easily on the control panel. They achieve high accuracy with variation usually within ±0.1 mm. The machine processes approximately 2 cubic meters of wood per hour under skilled operation.

The resulting veneer keeps consistent thickness. It also retains suitable temperature and moisture. These qualities prove critical for optimal performance in the subsequent carved cutting stage of the ice cream stick manufacturing process. Precise rotary peeling reduces raw material waste. At the same time, it supplies flat and high-quality sheets for stick forming.

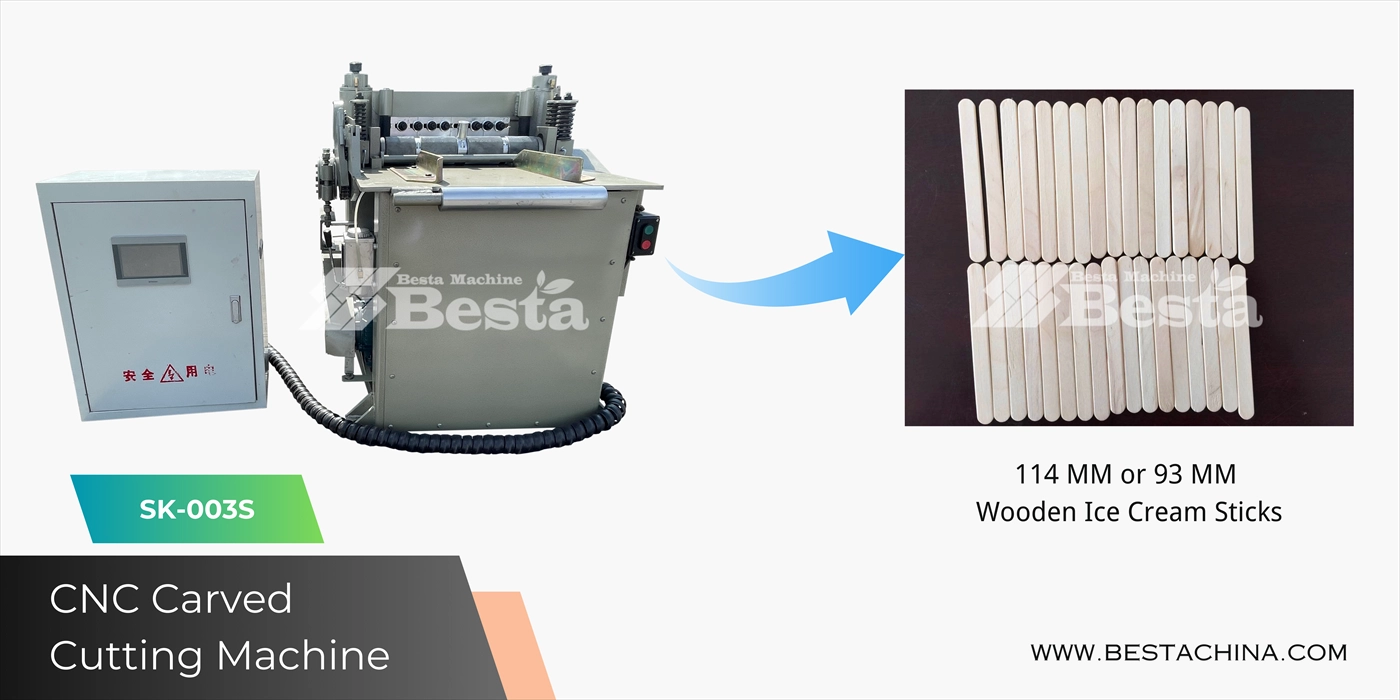

Stick Forming with CNC Carved Cutting Machine in Wooden Ice Cream Stick Making Production Line

Veneer sheets move directly to the punching stage. There, the CNC Carved Cutting Machine (CNC Type), model SK-003S, forms individual sticks.

Precision Carving and Size Customization in Wooden Ice Cream Stick Making Production Line

The SK-003S uses custom carved cutting blades in a high-precision die. It punches veneer into finished stick profiles. Common outputs are 114mm ice cream sticks and 93mm wooden ice cream sticks. Blade changes allow flexible production of different lengths or minor shape variations. This happens without replacing the entire machine.

This CNC model performs best with freshly rotary-cut veneer. The veneer retains appropriate temperature and humidity. As a result, it produces clean cuts with minimal splintering or edge defects. Servo-driven feeding ensures accurate material advancement. It also maintains tight dimensional tolerances across the wooden popsicle stick production line.

Drying and Initial Polishing Process in Wooden Ice Cream Stick Making Production Line

Freshly punched sticks still hold residual moisture. They require controlled drying to prevent warping, cracking, or quality degradation.

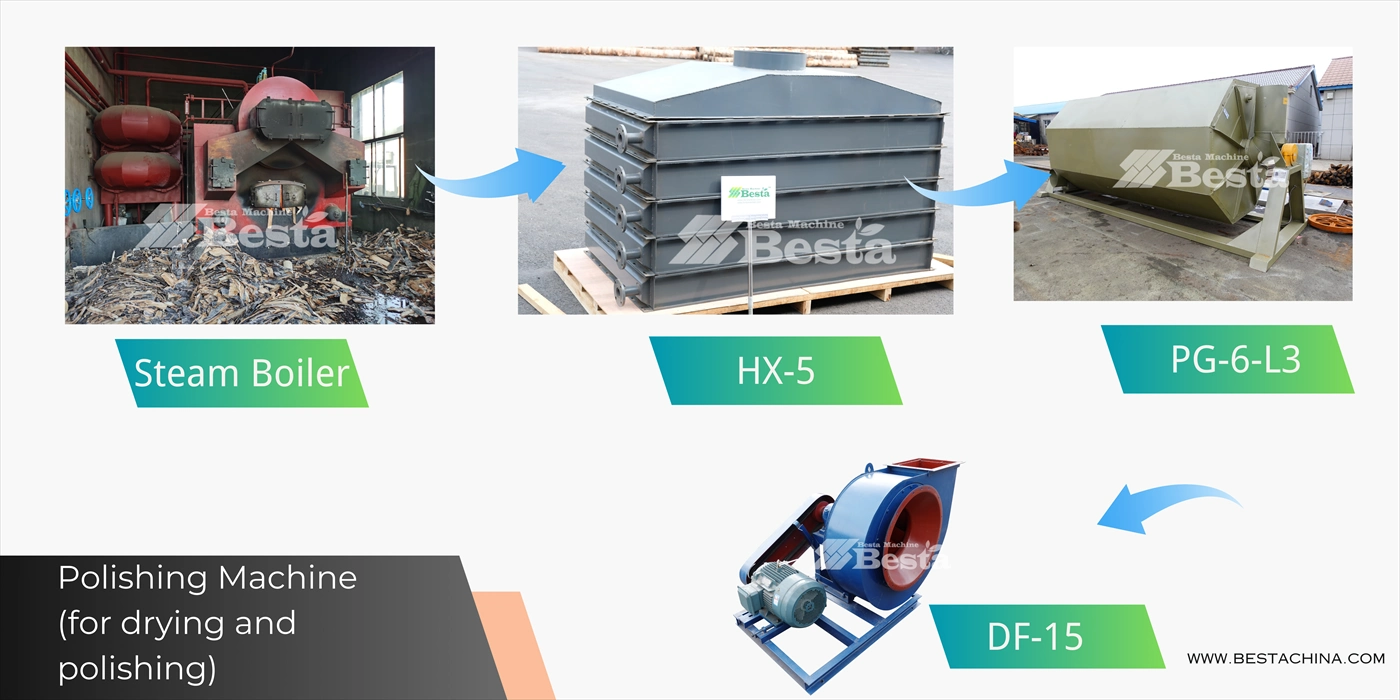

Integrated Drying and Polishing System in Wooden Ice Cream Stick Making Production Line

A dedicated subsystem manages this phase: · Steam Boiler supplies stable thermal energy. · PG-6-L3 Polishing Machine tumbles sticks to remove moisture while smoothing surfaces through controlled friction and airflow. · HX-5 Heat Exchanger optimizes heat transfer and temperature regulation. · DF-15 Draught Fan ensures efficient and uniform circulation of hot air.

This system typically reduces moisture content to 8–12%. At the same time, it gives the sticks an initial polished finish. The BSM-010 Blade Sharpening Machine supports upstream tool maintenance. Effective drying and polishing preserve stick strength. They also prepare the product for further finishing in the ice cream stick manufacturing process.

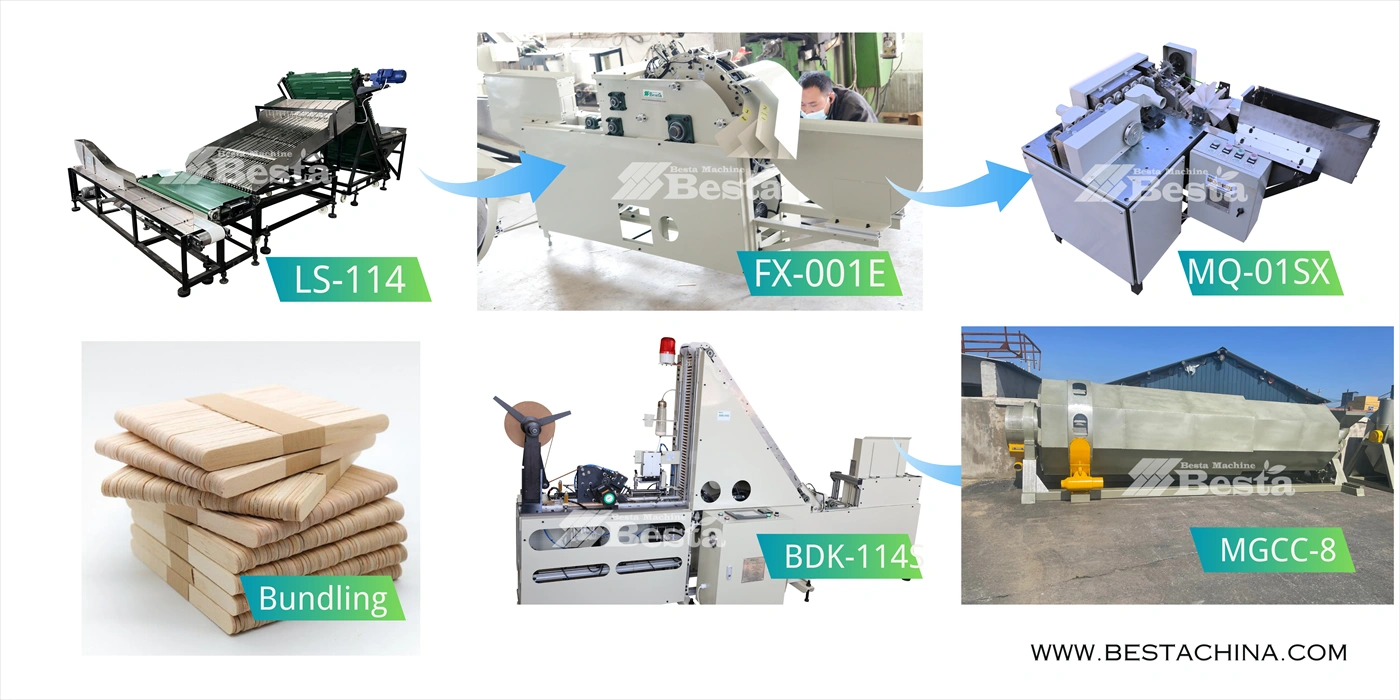

Post-Drying Finishing and Quality Control in Wooden Ice Cream Stick Making Production Line

Dried sticks enter automated finishing and inspection stages. These stages improve safety, surface quality, and uniformity.

Order Arranging and Primary Selection in Wooden Ice Cream Stick Making Production Line

The LS-114 Wooden Ice Cream Stick Order Arranging Machine aligns sticks uniformly for consistent feeding. The FX-001E Wooden Ice Cream Stick Selecting Machine performs primary mechanical selection. It removes obvious defects such as bent, thin, or narrow pieces.

Chamfering and Advanced Polishing in Wooden Ice Cream Stick Making Production Line

The MQ-01SX Wooden Ice Cream Stick Chamfering Machine rounds edges and angles. This creates smooth and splinter-free ends suitable for food contact. The MGCC-8 Dust Removing and Further Polishing Machine then eliminates residual dust. It also refines surface texture for a premium and hygienic finish.

Visual Quality Inspection in Wooden Ice Cream Stick Making Production Line

Advanced wooden ice cream stick production line setups often include the SJXJ-4C Four Cameras Visually Selection Machine. This system uses multiple high-resolution cameras. It detects subtle defects such as surface imperfections, dimensional variations, or discoloration. Inspection accuracy reaches up to 97%. Output speeds range from 45,000–55,000 pieces per hour. Multi-stage selection ensures only premium sticks advance.

Final Bundling and Preparation in Wooden Ice Cream Stick Making Production Line

The concluding operations organize finished sticks for efficient packaging and distribution.

Automated Bundling in Wooden Ice Cream Stick Making Production Line

The BDK-114S Wooden Ice Cream Stick Bundling Machine groups qualified sticks into standard 50-piece bundles. Automation improves handling consistency and reduces labor requirements.

Essential Maintenance Equipment Supporting the Wooden Ice Cream Stick Making Production Line

Reliable long-term performance depends on support tools. These include four-side blade grinding machines, white base board planing machines, and the MDJ-03 Carved Cutting Blade Tip Grinding Machine. They help maintain cutting precision across the full ice cream stick manufacturing process.

Technical Advantages of the Wooden Ice Cream Stick Making Production Line

Modern wooden ice cream stick making production line configurations achieve superior results through CNC precision and servo motor control. The SK-520S rotary cutter ensures highly uniform veneer thickness. The SK-003S carved cutter delivers clean and repeatable punching with minimal waste. Integrated drying systems with precise heat exchangers and draught fans achieve even moisture removal. They do this without compromising stick integrity.

Multi-stage quality control combines mechanical selection with four-camera visual inspection. It provides layered defect detection and high accuracy. Interchangeable carved cutting blades offer production flexibility for different stick dimensions. The modular design supports efficient scaling. Overall, the line produces strong and smooth sticks. These sticks have rounded and safe edges. They consistently meet food-contact standards while maintaining excellent material utilization and dimensional repeatability.

FAQ

What are the most common stick sizes produced in a wooden ice cream stick making production line?

Standard sizes are 114mm and 93mm. Other dimensions become possible by changing carved cutting blades.

Which machine produces the wooden veneer sheets in the wooden ice cream stick production line?

The SK-520S Wood Rotary Cutting Machine (CNC Type) peels logs into uniform veneer with high accuracy.

How is moisture removed from freshly carved wet sticks?

A coordinated system of Steam Boiler, PG-6-L3 Polishing Machine, HX-5 Heat Exchanger, and DF-15 Draught Fan provides controlled tumbling, heat, and airflow. It achieves even drying to 8–12% moisture.

What does the chamfering machine accomplish?

The MQ-01SX Chamfering Machine rounds edges for safe, comfortable, and splinter-free ends ideal for food use.

How many sticks are typically bundled?

The BDK-114S Bundling Machine packs sticks into standard 50-piece bundles.

Why is visual inspection included?

The SJXJ-4C Four Cameras Visually Selection Machine detects subtle defects with up to 97% accuracy. It ensures only premium sticks reach bundling.

Conclusion
