INTRODUCTION
Wooden Tongue Depressor Stick Making Machine
What are the machines needed for setting up wooden tongue depressor stick project ?

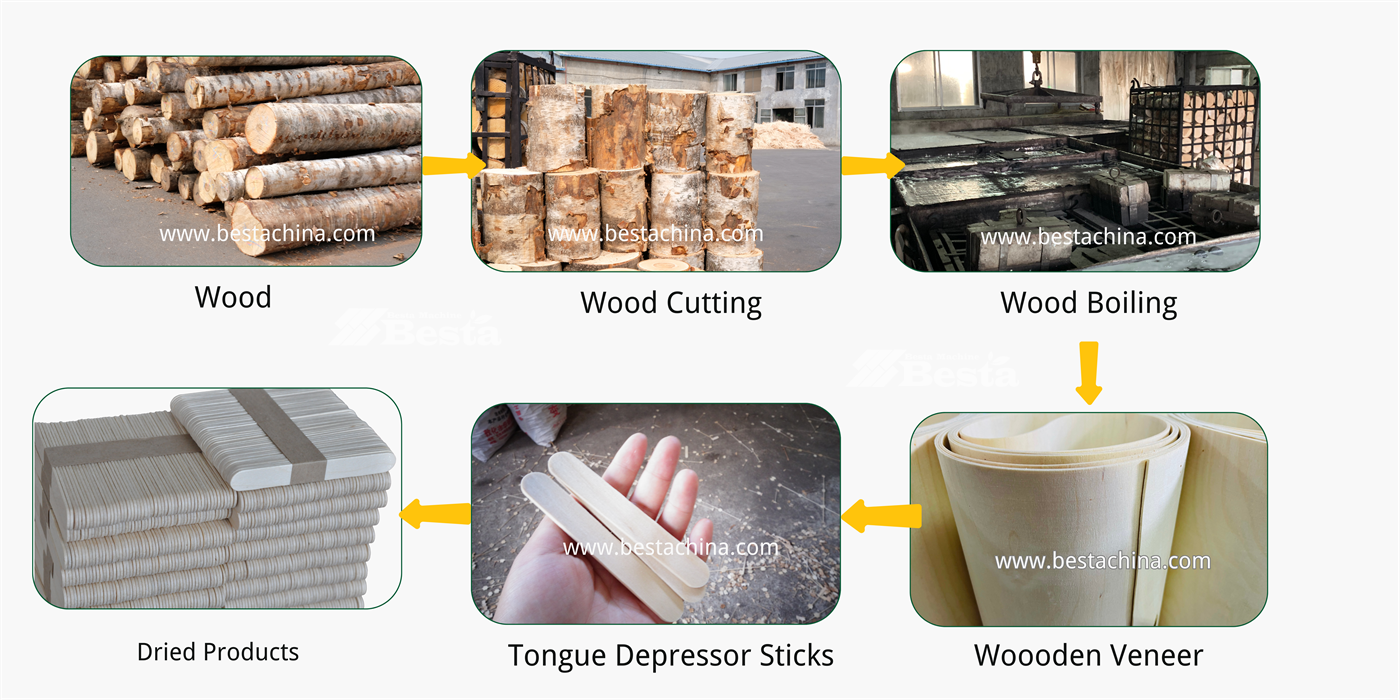

Stage 1: From Wood to Dried Products
| Item No. | Model No. | Machine Name |
| 1 | AJD-2 | Wood Cutting Machines |
| 2 | SK-520S | Wood Rotary Cutting Machine (CNC type) |
| 3 | SK-003S | Carved Cutting Machine (CNC Type) for tongue depressor stick punching |
| 4 | PG-6-L3 | Polishing Machine |
| 5 | HX-5 | Heat Exchanger |
| 6 | DF-15 | Draught Fan |
| 7 | BSM-010 | Blade Sharpening Machine |
Stage 2: From Dried Products to Well Packed Products
| Item No. | Model No. | Machine Name |
| 8 | LS-150 | Wooden Tongue Depressor Stick Order Arranging Machine |
| 9 | FX-001E | Wooden Tongue Depressor Stick Selecting Machine (Primary selecting ) |
| 10 | MQ-01SX | Wooden Tongue Depressor Stick Chamfering Machine |
| 11 | MGCC-8 | Dust Removing and Further Polishing Machine |
| 12 | SJXJ-4C | Four Cameras Visually Selection Machine |
| 13 | BDK-114S | Wooden Tongue Depressor Stick Bundling Machine |
| 14 | Tongue Depressor Stick Packing Machine (invidually packing type) |
Other machines which are used for machine maintenance
| Item No. | Model No. | Machine Name |
| A1 | Carved Cutting Blade Grinding Machine (four side sharpening) | |
| A2 | White Based Board Planing Machine |
|
| A3 | MDJ-03 | Carved Cutting Blade Tip Grinding Machine |
FEATURE
The Key Machines for Wooden Tongue Depressor Stick Making
-

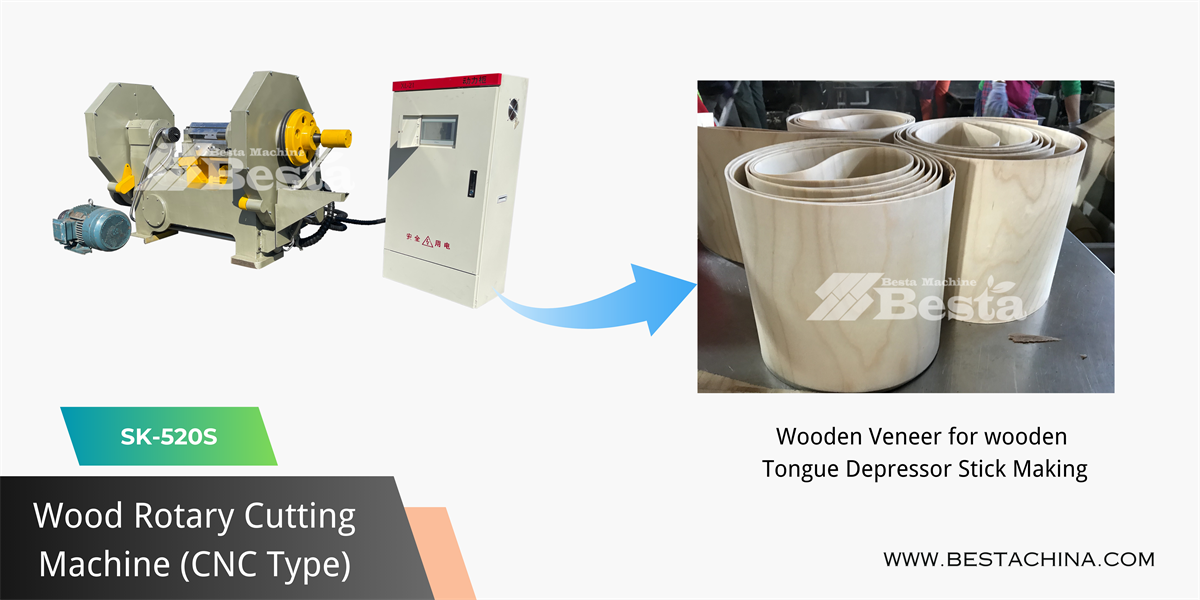

The first machine is wood rotary cutting machine. Our SK-520S CNC Wood Rotary Cutting Machine is mainly used for rotary cutting wood into wooden veneer.It is very easy for thickness setting. It is driven by servo motor. The products made by this machine is with high accuracy.

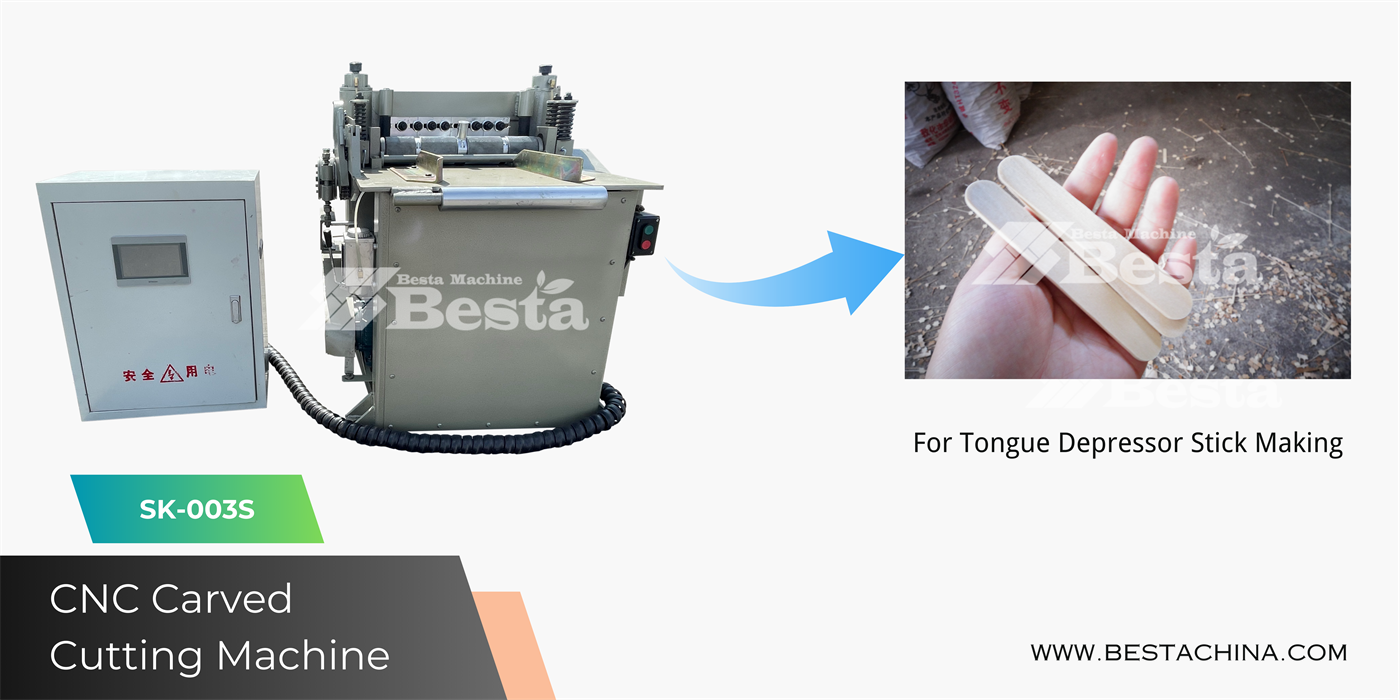

The second key machine for wooden tongue depressor stick making is SK-003S CNC Wooden Tongue Depressor Stick Carved Cutting Machine.It is used for shape forming wooden vener into wooden tongue depressor sticks. The regular tongue depressor stick length is 150 mm.

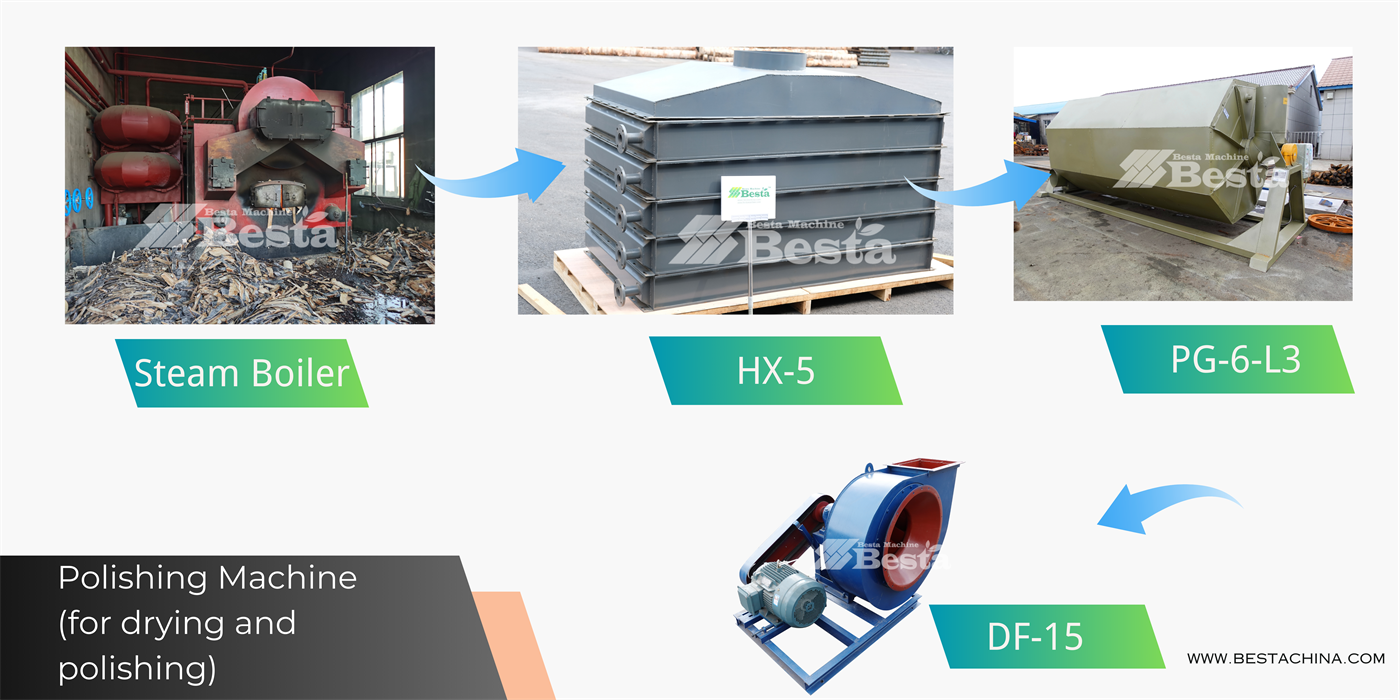

After punching process, you will get well shaped tongue depressor sticks. At that time, the tongue depressor stick is wet and with certain moisture. You need further machine for product drying and polishing. It needs the cooperation of steam boiler, heat exchanger and draught fan.

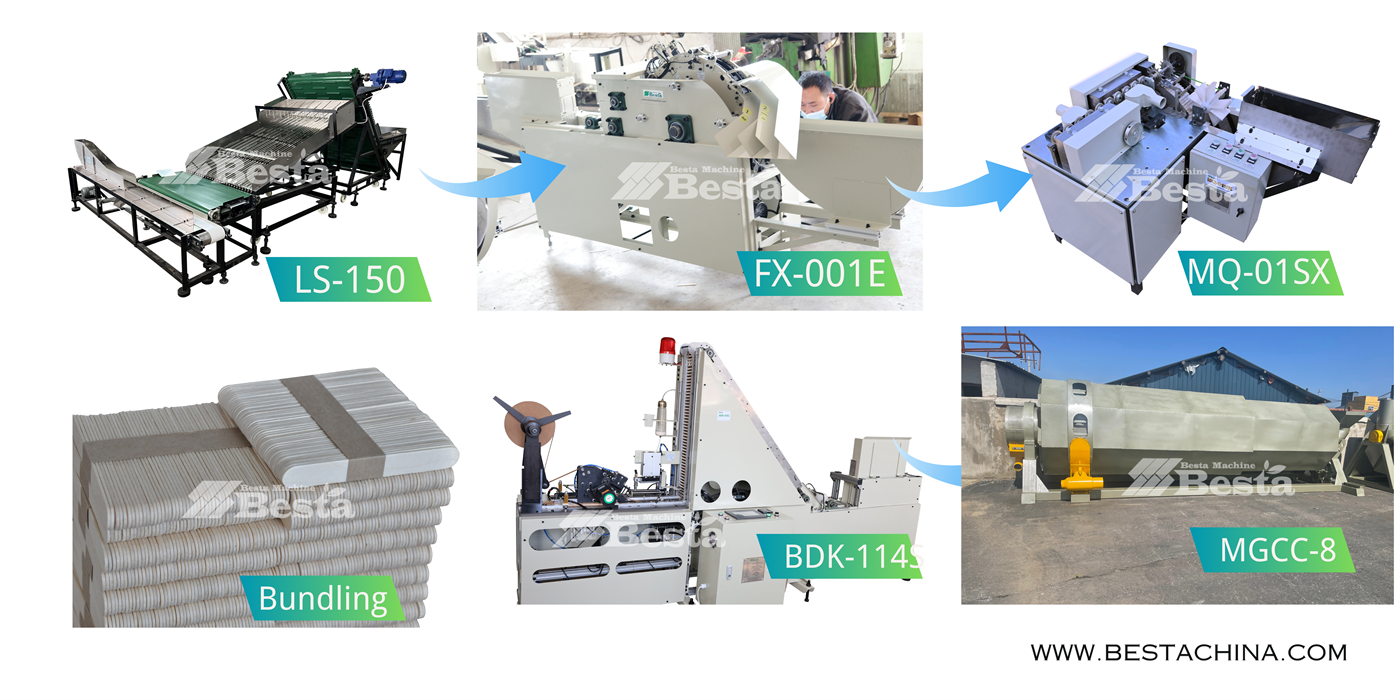

After get well dried products, you can use LS-150 Wooden tongue depressor stick order arranging machine to arrange the sticks into good order.FX-001E machine is mainly used for removing bent sticks,narrow stick and thin sticks. For Chamfering Machine, it is for chamfering the angle of the products.After chamfering process, the product is with round edge. To reach good effect, we will use MGCC-8 to further polishing the materials and also remove the dust on the sticks. and then if you have high requirement on the products, you can use VISUAL wooden tongue depressor stick selecting machine to further select the materials and then go for the next stage. The next stage is wooden tongue depressor packing or bundling process. The packing of tongue depressor stick is made according to your needs.
