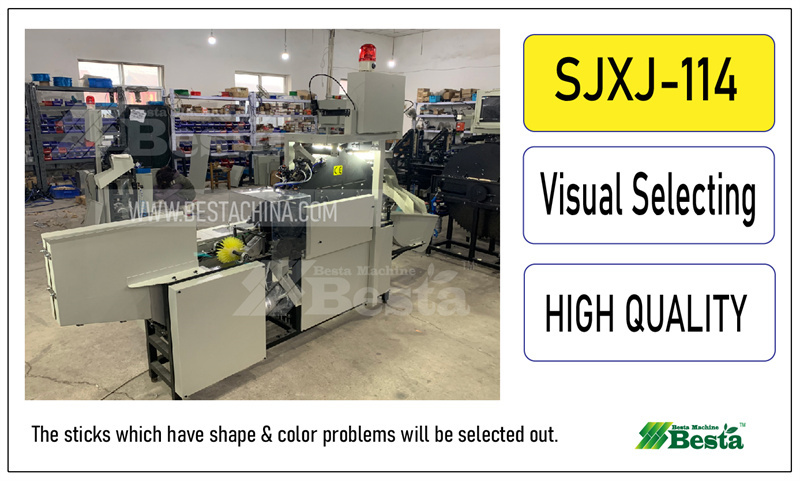

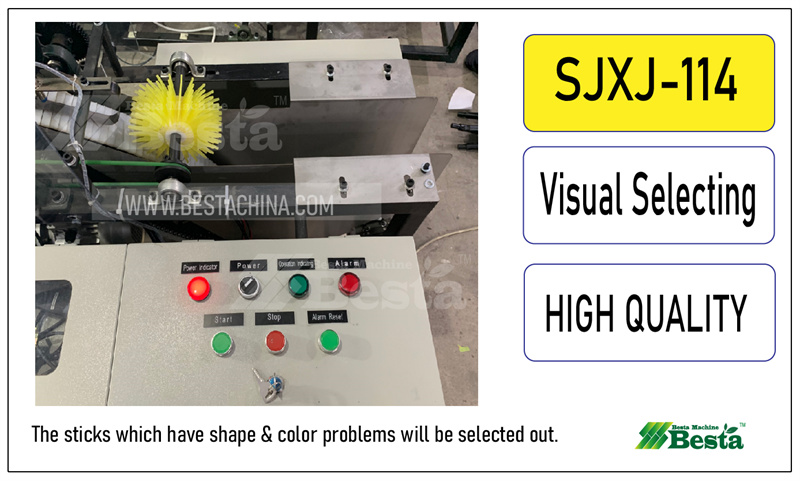

SJXJ-114 Visional Type Tongue Depressor Stick Selecting Machine

Name: Ice cream stick quality control machine

Visional Type Ice cream stick selecting Machine

Visional Type Tongue depressor stick selecting Machine

Function: For removing the unqualified stick out.

It can be designed according to your ice cream stick, tongue depressorstick size

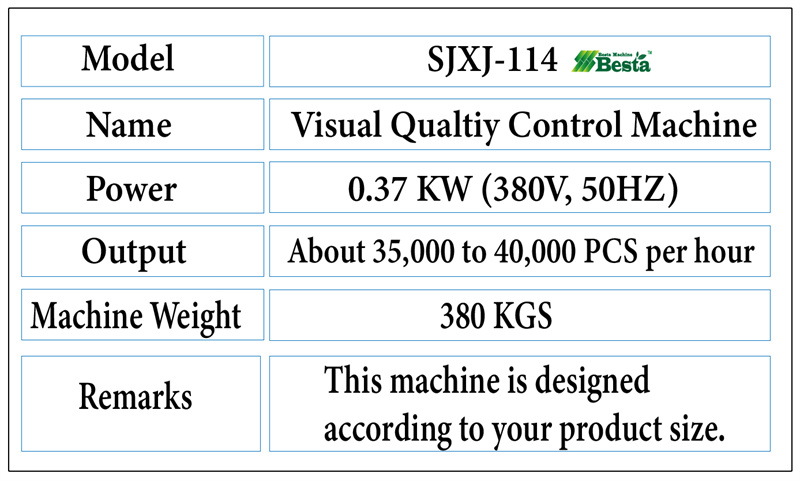

Machine Technical Data

Model: SJXJ-114

Name: Visual Wooden Ice Cream Stick Selecting Machine

Application: According to your product size

For example : 114mm ice cream stick, 93mm ice cream stick, 150 mm tonguedepressor stick size.

Power: 0.37 KW (380V, 50HZ, three phase)

Output: 35,000 to 40,000 PCS/HOUR

Machine Weight: 380 KGS

Machine Gross Weight: 500 KGS

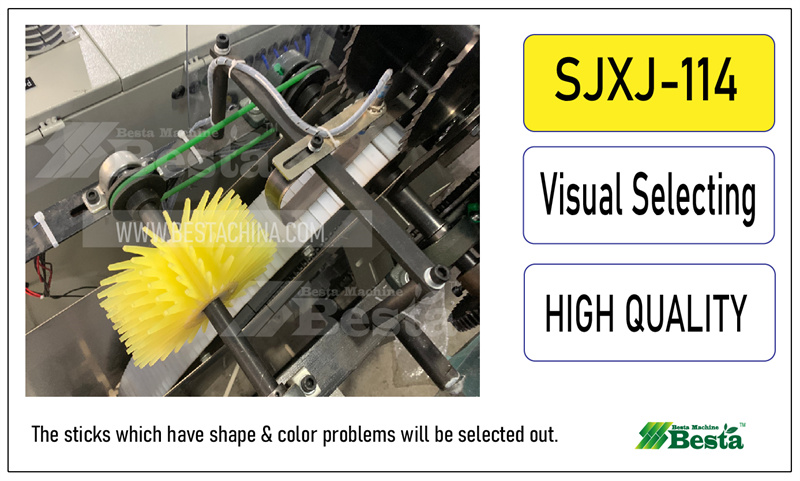

What’s New for this New VISUAL ICE CREAM STICK SELECTING MACHINE?

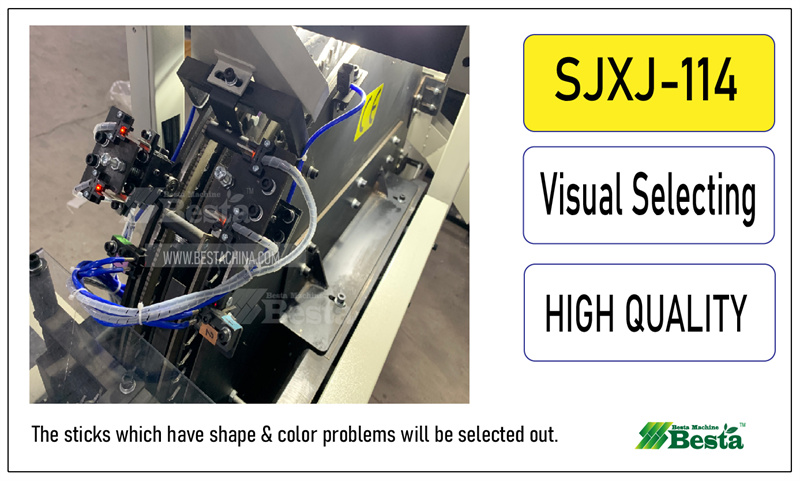

Wooden ice cream stick usually has shape problems, color problems etc.

This machine is the comprehensive machine for select unqualified stickout,

with color selections. We have two designs for your kind choosing.

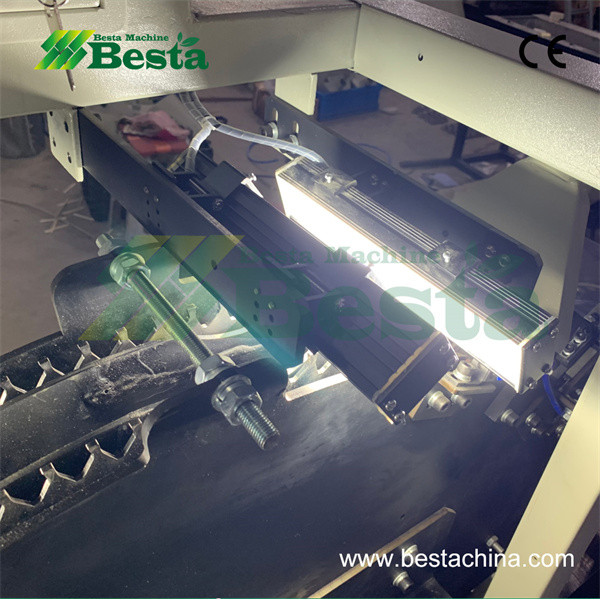

A) Two-lens type

B) Four-lens type

1.3 millionpixels

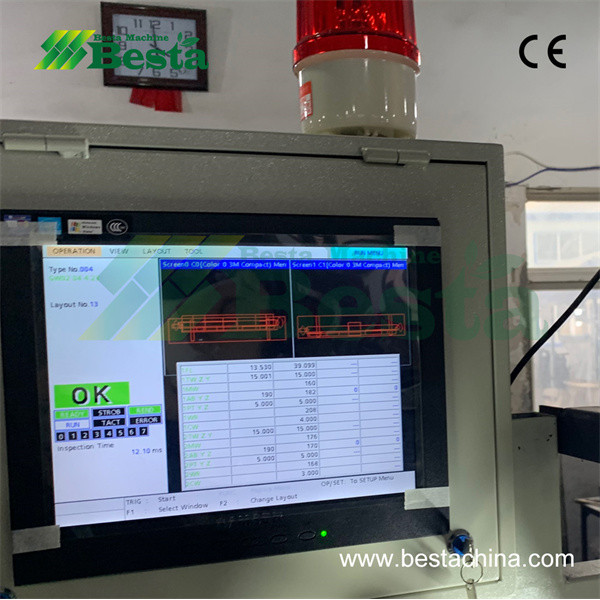

Inspection Item:

1. Polluted, color difference

2. Twoend too thin, narrow

3. Bent product

This machine isdesigned according to your product size.

1. You wish toapply this machine in ice cream stick selecting or tongue depressor stick?

2. What is yourproduct length, width, thickness range.

Brand: BESTA

Our Service: Wecan provide our customer a whole package plan from wood to finished ice creamstick, tongue

depressor stickmakings. We can offer you a factory design, layout, machine suggestion, spareparts supply and

also installation services, training services. We know both machine welland technology well.
