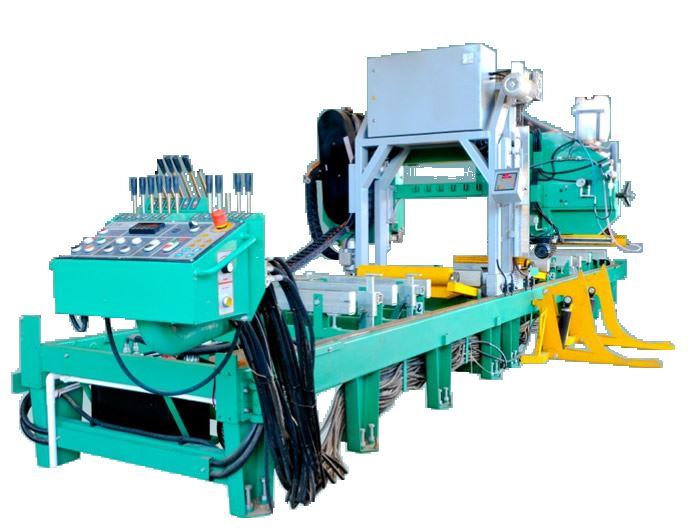

This machine is suitable for the cutting of all kinds of logs and large square wood. It has the following characteristics：
1. Full computer operation interface, easy to operate and convenient.
2. High-precision automatic digital display thickness setting and control system.
3. Hydraulic saw blade tensioning, automatic compensation system, ensuring that the saw blade is in optimal tension at all times, extending the service life of the saw blade.
4. Full hydraulic wood operating system: hydraulic loading, hydraulic tumbling, hydraulic adjustment, hydraulic clamping (multiple clamping methods), hydraulic automatic unloading of plates, infrared prediction.
5. The thickness of the sawing plate is uniform, the flatness is high, and the thickness error is small.
6. Bark pre-cutting system that removes stone and wire-light hard objects on the bark to maximize the protection of the saw blade.
7. Multiple automatic power-on protection system, safe and reliable operation process.
8. Achieve automatic cooling, lubrication, dust removal system; cooling, lubrication, dust removal in one step, safe and environmentally friendly.
Technical Parameters：
Product model | 1000H | 650H | |
Maximum sawing range | Log | Φ950 MM | Φ600 MM |
Square wood | 850 MM | 500 MM | |
Maximum sawing height | 875 MM | 575 MM | |
Minimum sawing height | 25 MM | 25 MM | |
Maximum sawing thickness | 450 MM | 350 MM | |
Standard sawing length | 7000 MM | 7000 MM | |
Extended sawing length | 3000 MM | 3000 MM | |
Minimum sawing length | 1200 MM | 1200 MM | |
Main motor power | 22 KW | 18.5 KW | |
Vertically moving motor power | 1.1 KW | 1.1 KW | |
Moving motor power horizontally | 1.1 KW | 1.1 KW | |
Saw arm moving speed | 25 M/MIN | 35 M/MIN | |
Saw pulley diameter | 720 MM | 720 MM | |
Saw blade size | 5970×50～60×0.9～1.1 MM | 5470×50~60×0.9~1.1 MM | |
Saw road loss thickness | 1.5～2.3 MM | 1.5～2.3 MM | |
Saw belt speed | 32 M/S | 32 M/S | |
Standard form factor | 8.7 M×2.5～2.9 M×2.5 M | 8.8 M×2.2～2.6 M×2.3 M | |
weight | 2800 KGS | 2300 KGS | |
