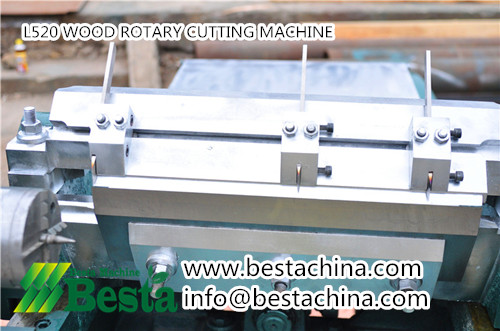

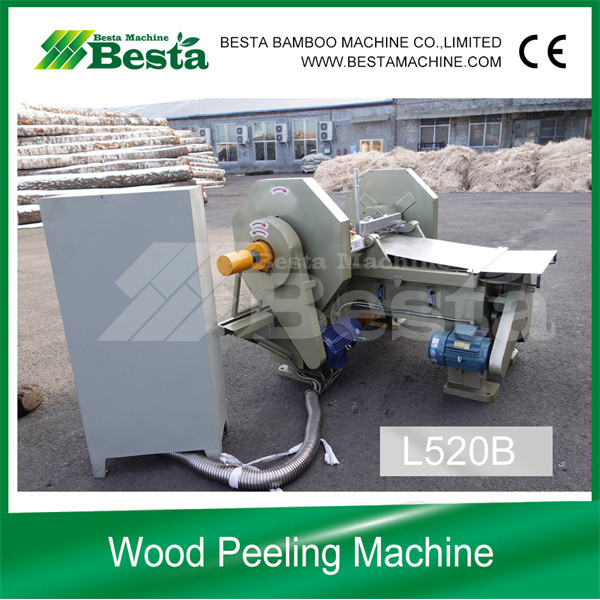

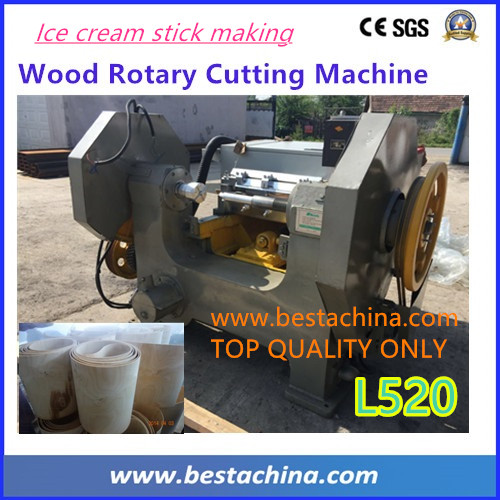

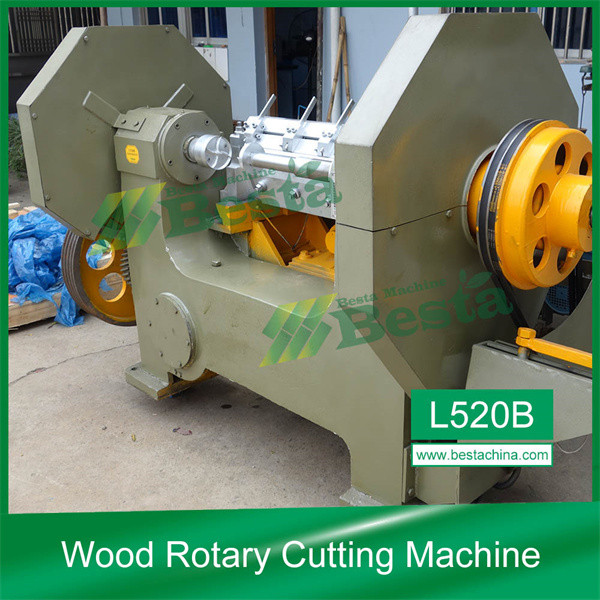

L520 Wood Rotary Cutting Machine, Ice-Cream Stick Machine

Heavy Wood Rotary Cutting Machine

Technical Data

**Capacity: It can rotary cutting wood about 2.5 to 3 cubic meters per hour

Power: 15.5 KW

Processing Length: Max. 520MM

The diameter of the Clamp: Max. 780MM
The main axis rotating speed: 240R/MIN

Machine Size: 2500MM*2400MM*1300MM

Machine Weight: 2200 KGS

Our Machine Advantage

For our rotary machine, we improved a lot. The Max. Diameter of the wood we can process is 780mm. while other company max. Diameter is about 330mm. our machine also have good stability, the precision difference is 0.05mm. While other company is about 0.15mm. The rotation speed of our machine can reach 240 R/MIN while other company’s machine is about 163 R/MIN

Usually, the blade we equipped for customer is for processing wood max.480mm length processing.

Whole Production line (From wood-->dried ice-cream stick)

VIDEO LINK:

https://www.youtube.com/watch?v=Ewu1LddQplY

The process of wood rotary cutting
