Bamboo BBQ Stick Making Machine Line: How Bamboo Skewers Are Manufactured

The Bamboo BBQ Stick Making Machine Line shows modern, focused gear built to change raw bamboo into good-quality, even bamboo skewers (also known as bamboo BBQ sticks, round bamboo skewers, or grilling skewers). Current Bamboo BBQ Stick Making Machine lines mix several set machines. They deal with each part—from first raw material setup to last sharpening and polishing. This setup brings steady work, low waste, and solid results.

Understanding the Bamboo BBQ Stick Production Process

Bamboo skewer manufacturing turns raw bamboo culms into smooth, pointed sticks through a set of focused steps. The process stresses steady work, low waste, and quality check to make skewers often 2.5–5.0 mm in diameter and 200–300 mm long (e.g., common sizes like 3.0 mm × 250 mm).

The whole flow splits into two key parts:

1. Primary Processing — Converting raw bamboo into fresh bamboo sticks (also called bamboo wool or filaments).
2. Finishing Processing — Treating, drying, cutting, polishing, sharpening, and packing the sticks.

Phase 1: Raw Bamboo to Fresh Bamboo Sticks

This first part sets up the material. It also forms it into steady strands.

• Raw Bamboo Sawing Mature bamboo poles (harvested from sustainable sources) are cut into handy sections using a raw bamboo sawing machine. This part cuts off uneven ends. It also sets even lengths for more splitting. Good sawing keeps low material loss. It also brings smooth next steps.
• Bamboo Splitting A bamboo splitting machine splits the sections into thinner strips. Many blades let changes based on bamboo size and wanted output. This makes even splits. It also cuts outer layers and nodes partly.
• Fixed Width Slicing and Knot Removing Fixed width slicers (often with knot-removing features) work the splits into even-width strips. This part sets exact thickness. It also takes out left knots or odd spots. So, it keeps steady material quality for the next forming part. If strips stay too thick, small layering machines may help to tune them more.
• Bamboo Stick Shape Forming The main forming happens here with bamboo wool slicers or stick shape forming machines. These steady units plane and form the strips into round bamboo sticks of the goal diameter (e.g., 2.5 mm, 3.0 mm, 4.8 mm, or 5.0 mm). Changeable cutters give options for varied skewer sizes.

At this point, fresh (green) bamboo sticks come out — still full of moisture and needing treatment.

Phase 2: Treatment, Finishing, and Packaging

Fresh sticks go through chemical or heat treatment to boost strength and clean state before last shaping.

• Chemical Treatment and Boiling Sticks are boiled in stainless steel tanks (often with chemical additives) to take out sugars, starches, and possible insects. This stops mold and betters shelf life. This part matters for food-safe goods.
• Drying Treated sticks are dried using hot air stoves or drying chambers until moisture content drops below 10%. Tuned drying stops breaks, bends, or color changes. Thus, it keeps straight, firm skewers.
• Precise Length Cutting Dried sticks are fed into precise cutting machines that trim them to exact lengths (e.g., 250 mm). High care here makes sure evenness for packing and end-use.
• Polishing BBQ stick polishing machines tumble and sand the sticks. They make a smooth, splinter-free surface. This betters looks, safety, and user feel. It also takes off any left roughness.
• Sharpening Sharpening machines (single- or double-end) point one or both ends for easy food pierce. Tuned settings let changes for varied tip types. High-speed work keeps production speed.
• Packing Final BBQ stick packing machines count, bundle, and package the skewers automatically. They get ready for sending out. This part often adds labels and seals for clean state.

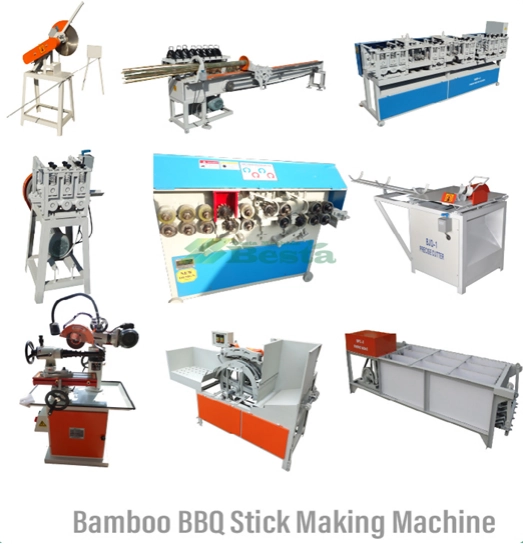

Core Components of a Bamboo BBQ Stick Making Machine Line

A full Bamboo BBQ Stick Making Machine Line usually has 8–10 focused units. Each is set for a clear job. The line matches flow by fitting sizes. Sharpening often sets the speed limit.

1.Raw Bamboo Sawing Machine (e.g., ZG-1 Type)

This first machine cuts mature bamboo culms into handy sections. They run 1.5–2.0 meters long. It has high-speed circular saws and tunable feeding parts. So, it cuts low material loss. It also keeps even lengths for next splitting. Strong blades and firm frames deal with varied bamboo sizes. They set the base for steady work.

2.Bamboo Splitting Machine (e.g., ZP-2500 Series)

The splitting unit uses many tunable blades to split sections into thinner strips. It takes off outer skin and some nodes well. This brings even splits. Hydraulic or mechanical pressure systems make clean cuts without breaks. They fit different bamboo types. They set material for width control.

3.Fixed Width Slicer with Knot Removing Function (e.g., MZP-3 Model)

This steady slicer sets even strip width and thickness. It also cuts out left knots and odd spots. Knot-removing blades and tunable guides bring steady sizes (key for round stick forming). Many sets often run to match line speed. This stops blocks in high-output setups.

4.Small Layering Machine (e.g., MZP-1 Series)

For thicker strips, this machine layers or thins material more. It tunes strips to best thickness before last shaping. Thus, it makes smooth feed into stick-forming units. It also cuts faults in final diameter control.

5.Bamboo Stick Shape Forming Machine (e.g., MBZS-4 or MBZS-5 Series)

The heart of the Bamboo BBQ Stick Making Machine Line, this forming machine planes and shapes strips into round bamboo sticks of exact diameters (commonly 2.5 mm, 3.0 mm, 4.8 mm, or 5.0 mm). Changeable shaping blades and high-steady rollers make smooth, even filaments (often called bamboo wool). Many units (2–4 sets recommended) raise size while keeping roundness and straightness needed for BBQ skewers.

6.Precise Cutting Machine (e.g., BJQ-1 Model)

After drying, dried sticks feed into this cutter for exact length trim (e.g., 250 mm or 300 mm). Servo-controlled or mechanical stops bring high care (±0.5 mm tolerance). High-speed work backs steady flow. Dual or many sets deal with amount without losing evenness.

7.BBQ Stick Polishing Machine (e.g., BPG-3 Series)

This tumbling or drum-based polisher tunes surfaces by taking minor roughness and splinters. Tunable speed and rough media make a smooth, splinter-free finish good for food touch. 1–2 units per line keep polished skewers that boost user safety and looks.

8.BBQ Stick Sharpening Machine (e.g., BXJ-3S Model)

Focused sharpeners point one or both ends with tunable angles for pierce work. High-speed grinding wheels and steady feeding bring even sharp tips (single-point or double-point options). As the block, 2–3 sets are suggested for even production. They reach rates up to 1,000 pieces per minute per unit.

9.Supporting Equipment and Maintenance Tools

Blade Sharpening Machine (e.g., XMD-02): Maintains cutting tools for long-term precision.

Packing Machine: Automates bundling and sealing for hygiene.

Auxiliaries: Stainless steel boiling tanks for sugar/insect removal, hot air drying stoves for moisture control (<10%), electric hoists for handling.

How the Bamboo BBQ Stick Making Machine Line Operates Step-by-Step

1. Raw Preparation: Sawing and splitting convert culms into strips.
2. Refinement: Width slicing, layering (if needed), and shape forming produce fresh round sticks.
3. Treatment: Boiling removes sugars/starches; drying stabilizes moisture.
4. Finishing: Precise cutting, polishing, and sharpening yield ready skewers.
5. Output Optimization: Balanced quantities (e.g., more sharpeners) prevent idle time. A standard line with 2–3 sharpeners can output 480,000–1,000,000+ pieces (3.0 mm × 250 mm) per 8-hour shift, depending on configuration.

Advantages of Investing in a Dedicated Bamboo BBQ Stick Making Machine Line

These lines give:

• High Precision: Uniform diameter, length, and sharpness reduce rejects.
• Efficiency: Automated feeding and processing lower labor needs (typically 3–6 operators).
• Versatility: Adjustable settings support various sizes and tip styles.
• Durability: Industrial-grade components ensure reliable long-term operation.
• Sustainability Focus: Bamboo's rapid renewability pairs with low-waste designs.

FAQ

What is the typical diameter and length for bamboo BBQ sticks produced by these machines?

Most lines produce skewers from 2.5–5.0 mm in diameter and 200–300 mm long, with 3.0 mm × 250 mm being a common standard for grilling applications.

Can the same production line make different sizes of skewers?

Yes — adjustable cutters, slicers, and formers allow switching between diameters and lengths with minimal reconfiguration.
