Strand Woven Bamboo Beam Cold Press Machine New Technology YD12-3600

Strand Woven Bamboo Beam Cold Press Machine New Technology YD12-3600

Strand Woven Bamboo Beam Cold Press Machine New Technology YD12-3600
Strand Woven Bamboo Beam Cold Press Machine New Technology YD12-3600Strand Woven Bamboo Beam Cold Press Machine New Technology YD12-3600Strand Woven Bamboo Beam Cold Press Machine New Technology YD12-3600Strand Woven Bamboo Beam Cold Press Machine New Technology YD12-3600
CategoriesBamboo Flooring Machine
AlbumView larger image
BrandBesta
ModelYD-3600
strand woven bamboo flooring machinebamboo furniture board machine
bamboo flooring linesstrand woven bamboo machines
FOB portShanghai
Terms of PaymentL/C, T/T
Update Time2019-09-16
Detail Information
YD12-3600 Strand Woven Bamboo Block Cold Press Machine
Strand woven bamboo block Hydraulic Oil Press, Cold Press for bamboo flooring making

MODEL: YD12-3600

Strand Woven Bamboo Beam Press Machine, Oil Press Machine

MACHINE SIZE: 2550*2600*5500MM

Working Table Size: 2500*1500MM

Weight: 80 tons

Application: Making Stranded glued bamboo strip into

strand woven beam. (2500*140*143mm)

Type of Press: Oil hydraulic Press

Type of Oil Cylinder : 12 numbers of cylinder

Diameter of main oil pipe : 76*8mmm

Diameter of Cylinder : 380mm

Motor :  Two 30KW electric motor and one 5.5 KW motor

Main Oil Pump : two 160 L plunger pumps

Max. Pressure: 3500 Tons

Cylinder Stroke : 850MM

Electrical Control System: Mitsubishi PLC control systems.

Capacity: 500 PCS block/day per 20 hours.

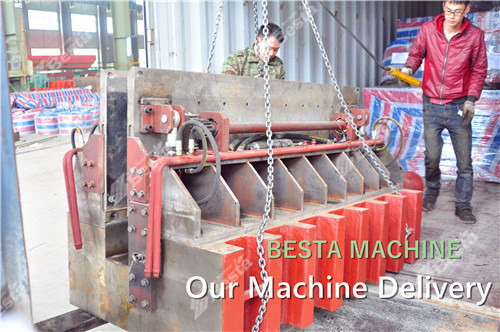

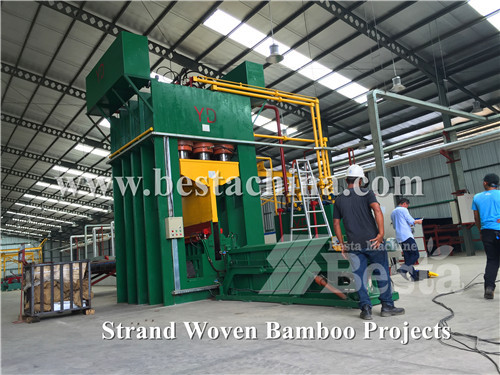

YD12-3600 Strand Woven Bamboo Block Cold Press Machine PHOTO
What are the machines needed for setting up a strand woven bamboo board line?
ZG-1
Bamboo Sawing Machine
ZP-2500
Bamboo Splitting Machine
MZP-3
Bamboo Strip Slicing Machine
MZKP-N1
Big Bamboo Expanding and Stranding Machine
MZP-3L
Bamboo Strip Slicing Machine (3 layers)
MZP-1
Small Layering Machine
BS-YS-4
Bamboo Strip Stranding Machine (small)
TZQ-020
Medium Type Blade Sharpening Machine
YDCB-6
Carbonizing Boiler
YD9-3000
Strand Woven Beam Press (cold press)
YDMC-1920
Mould Cavity
YDLO-1920
Loading Machine
YDUL-1920
Unloading Machine
YDMO-1920
Mould (1920*140*143MM)
YDDR-55
Drying Machine
Glue Dipping Machine
Glue Dipping Basket
YDCU-1920
Block Curing Machine
YDCO-1920
Cooling Machine
YDDE-1920
Demoulding Machine
YDBR-1920
Strand woven beam balance machine
YDEC-1920
End Cutting Machine
YDTM-1920
Trimming Machine
YDMS-1920
Multi-Blade Sawing Machine
GMM-1920
Glue Making Machine
GDBMG-01
Blade Grinding Machine Type 1
GDBMG-02
Blade Grinding Machine Type 2
The flow of making bamboo into stranded bamboo strip
The flow of making bamboo into stranded bamboo strip
1. BAMBOO SAWING
2. BAMBOO SPLITTING
3. BAMBOO STRIP KNOT REMOVING, WIDTH SETTING,
SEPARATING GREEN LAYER FROM YELLOW LAYER
4. LAYERING THE BAMBOO STRIP INTO THINNER ONES
5. USING THE BAMBOO STRANDING MACHINE TO BREAK
THE BAMBOO FIBER
5. CHEMICAL TREATMENT/CARBONISING PROCESS
6. DRYING PROCESS
7. GLUE DIPPING PROCESS
8. DRYING PROCESS

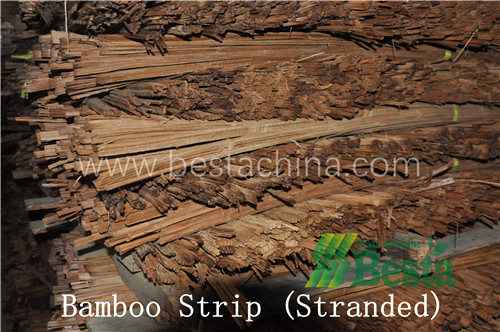

9. Then you will get DRIED stranded bamboo strip
10. Balance the bamboo strip
THIS IS THE MATERIALS WE WILL USE FOR PRESSING INTO STRAND WOVEN BAMBOO BEAM.
Strand Woven Beam Size Option
1
1920*140*143 MM
2
2500*140*143 MM

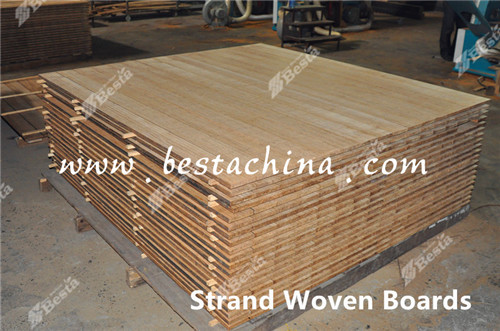

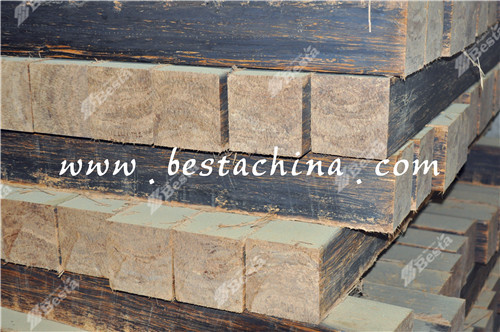

Strand Woven Beam and Furniture Board Photo
Application of Strand Woven Bamboo Furniture Board
Contact Us

BESTA BAMBOO MACHINE CO., LIMITED

CONTACT PERSON; ANGEL ZHOU

MOB/Whatsapp/Wechat: 0086 186 5710 6860

Email: info@bestachina.com  angel@bestachina.com

angelzhou1224@foxmail.com

Working Time: 9:00 am to 18:00 p.m (China Time)

Welcome to add our whatsapp/wechat and email us.

www.bestachina.com

www.bestamachine.com

www.bestachina.net


Our machines are widely exported to INDIA, INDONESIA and many other countries.
Your Concerned Questions
1. What is the total budget for setting up a strand woven bamboo board line?
The investment is about 1 million USD .

2. How long it will take to make the shipment ?
Within 2 month after confirming the receipt of advance payment .

3. What is the daily bamboo consumption for this production line ?
About 40 tons per day.
