Toothpick Production Line, Bamboo Toothpick Machine (whole set)

Toothpick Production Line, Bamboo Toothpick Machine (whole set)

Toothpick Production Line, Bamboo Toothpick Machine (whole set)
Toothpick Production Line, Bamboo Toothpick Machine (whole set)Toothpick Production Line, Bamboo Toothpick Machine (whole set)Toothpick Production Line, Bamboo Toothpick Machine (whole set)Toothpick Production Line, Bamboo Toothpick Machine (whole set)Toothpick Production Line, Bamboo Toothpick Machine (whole set)
CategoriesBamboo Toothpick Machine
AlbumView larger image
BrandBesta
ModelBTM-001
ApplicationBamboo Toothpick Machine
Output1,200,000 pcs per 8 hours
PackingPlywood Case
Delivery timeWithin 20 days
BrandBESTA
FOB portShanghai,etc
Terms of PaymentT/T
Download DOC
Update Time2019-11-22
Detail Information

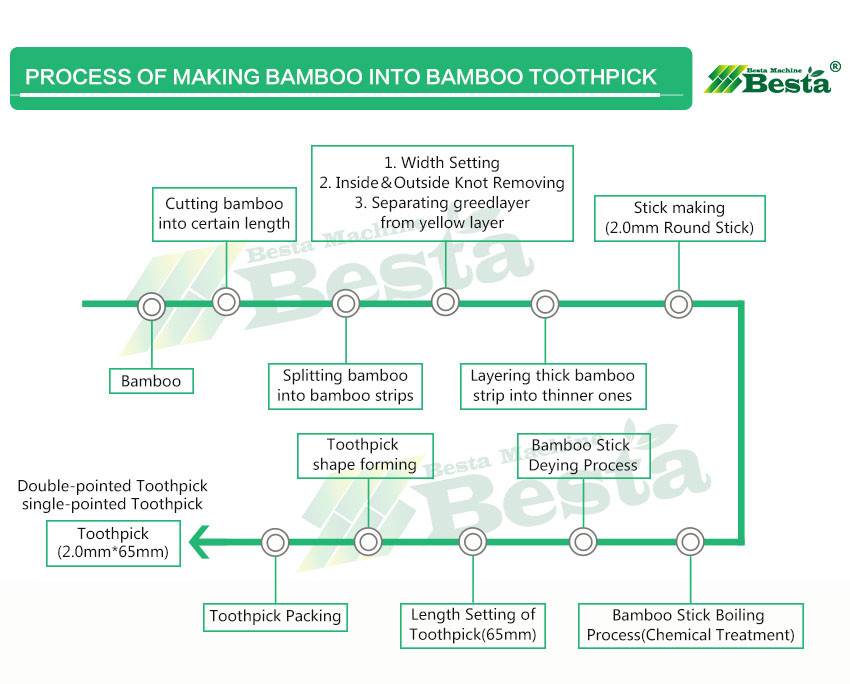

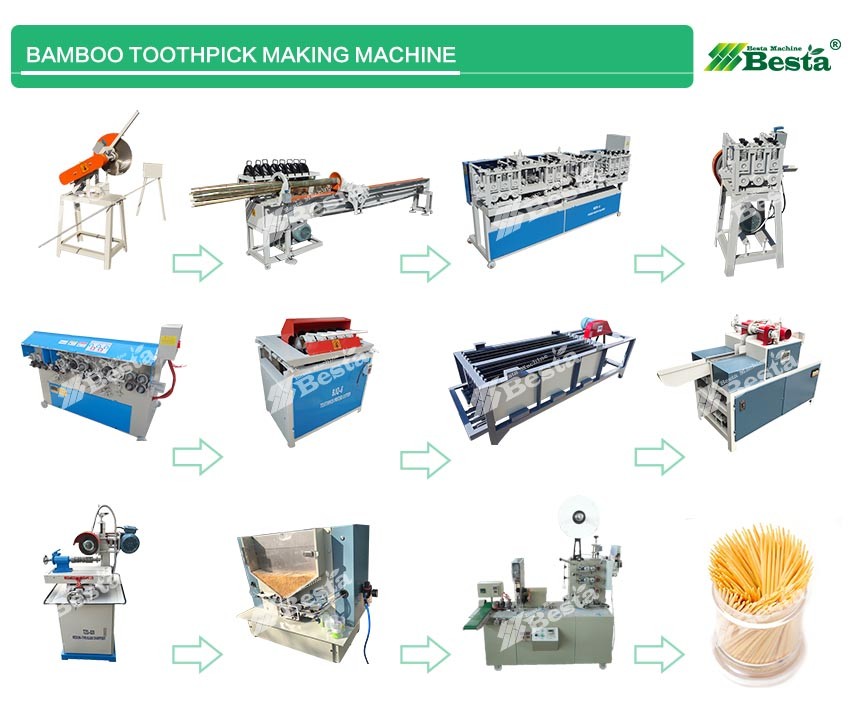

The Whole Production Line About Bamboo Toothpick Machine
It is consisted by the following machine

(1) ZG-1 Raw Bamboo Sawing Machine   ( 1 SET)

(2) ZP-2500  Bamboo Splitting Machine    ( 1 SET)

(3) MZP-3 Fixed Width Slicer                     (2 SETS)

(4) MZP-1 Small Layering Machine          (2 SETS)

(5) MBZS-5 Bamboo Wool Slicer (bamboo stick making)        (3~4 SETS)

(6) BJQ-6 Precise Cutting Machine          (2 SETS)

(7) BPG-1G Toothpick Polishing Machine (High Speed)  (2 SETS)

(8) BXJ-1S Toothpick Sharpening Machine (2.0mm*65mm toothpick)  (3~4               SETS)

(9) TZQ-020 Medium-type Blade Sharpening Machine   ( 1 SET)

Optional Machine

(10) Hot Air Stove --It is for supply the heat for drying bamboo sticks.

(11) Stainless Steel Tank --It is for chemical treatment of bamboo sticks.

(12) Toothpick Packing Machine --It is for packing toothpicks.

There are two types of bamboo toothpick, one is single pointed toothpick, another type is double pointed toothpick.

If you want to make both, you need to buy 2 set of toothpick sharpening machine.

Raw Bamboo Cutting Machine
Model: ZG-1
Brand Name: BESTA MACHINE
Function: Cut the bamboo.
in a certain length
Power: 2.2 KW (three phase)
Machine Size:
1100 * 555 * 1200 MM
Machine Weight: 85 KGS
Bamboo Splitting Machine
Model: ZP-2500
Brand Name: BESTA MACHINE
Function: dividing the
bamboo in strips
Power: 3 KW-6 (three phase)
Division Length: Max 2.7 meters
Machine Size:
4270 * 1000 * 1150 MM
Weight: 800 KGS
Fixed Width Slicer
Model: MZP-3
Brand Name: BESTA MACHINE
Function: width / thickness adjustment,knot removal, layer separation
Power: 10.6 KW (three phase)
Machine Size:
2300 * 570 * 1190 MM
Weight: 600 KGS
Small Layering Machine
Model: MZP-1
Brand Name: BESTA MACHINE
Power: 2.2 KW (three phase)
Function: Thicker layers
pull on the thinnest
Processing Thickness: 2 ~ 15 MM
Net Weight: 120 KGS
Machine Size:
540 * 570 * 960 MM
Bamboo Wool Slicer
Model: MBZS-5
Brand Name: BESTA MACHINE
Function: Making Bamboo
Strip into bamboo sticks
Power: 11 KW (three phase)
Stick Size:1.3mm to 8mm etc.
Machine Size: 1400*800*1100 MM
Net Weight: 750 KGS
Precise Cutting Machine
Model: BJQ-6
Brand Name: BESTA MACHINE
Function: Cutting the long stick into
65 mm
Power: 3 KW (three phase)
Main Axis Rotation Speed:
3200 RPM
Machine Size: 990*620*780 MM
Net Weight:125 KGS

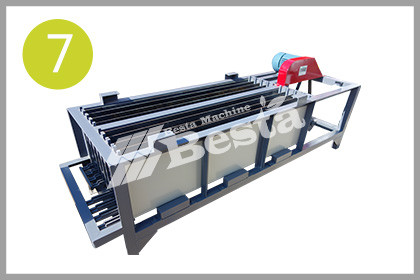

Toothpick Polishing Machine
Model: BPG-1G (HIGH SPEED)
Brand Name: BESTA MACHINE
Function: Polishing the wooden stick,making the surface more smooth
Power: 2.2 KW (three phase)
Machine Size: 2500*850*700 MM
Net Weight:470 KGS
Toothpick sharpening
machine
Model : BXJ-1S
Brand Name:BESTA MACHINE
Function:Shape forming of toothpick
Power:2.75KW(Three phase)
Output:2500 PCS/MINUTE
Machine Size:1100*800*820MM
Machine Weight:280 KGS
Medium type blade
sharpening machine
Model:TZQ-020
Brand Name: BESTA MACHINE
Function: Flat Blade,Shaping.
This machine is used in machine maintaining.
Power: 0.75 KW(three phase)
Main Axis Rotation Speed:
2800 R/MIN
Machine Size: 780*740*1450 MM
Weight: 150 KGS
Toothpick Plastic Container Packing Machine
Model : PZJ-1
Brand Name: BESTA MACHINE
Function: Filling the toothpick into container
Number of cylinders: 4 Nos
Working Pressure: 4 KGS pressure
Machine Size: 880*470*690 MM
Machine Weight: 67 KGS
Regular Diameter of Plastic Container: 48 MM
Toothpick Packing Machine
Model: GD-BZ2
Brand Name: BESTA MACHINE
Function: Toothpick packing of toothpick, 1 pc/bag
Power: 0.37 KW (single phase)
Application: Bamboo and wooden toothpick packing.
Type: 2 color printing type.
Machine Size: 1300*700*2000 MM
Net Weight: 280 KGS
Remarks:Three side sealing,
2 color printing
Toothpick Photos

Contactanos

Entre em contato conosco

Hubungi kami

ANGEL ZHOU 0086 186 5710 6860 (Whatsapp)

www.bestamachine.com

www.bestachina.com

Email: info@bestachina.com

QQ: 411601505

Skype: angel12242008

Alternative email:

angelzhou1224@gmail.com

angelzhou1224@foxmail.com

For how to visit us: Nearest Airport:

HANGZHOU AIRPORT.

Complete line of bamboo toothpick making machine

VIDEO LINK:https://youtu.be/IS0BC3u5oD0

High speed toothpick sharpening machine (video) Speed: 2500 to 3500 PCS/Minute
Suggested Quantity For a Basic Line (Key Machine)
Suggested Quantity For a Basic Line (Auxiliary Equipment)
Concerned Questions for Bamboo Toothpick Production Line

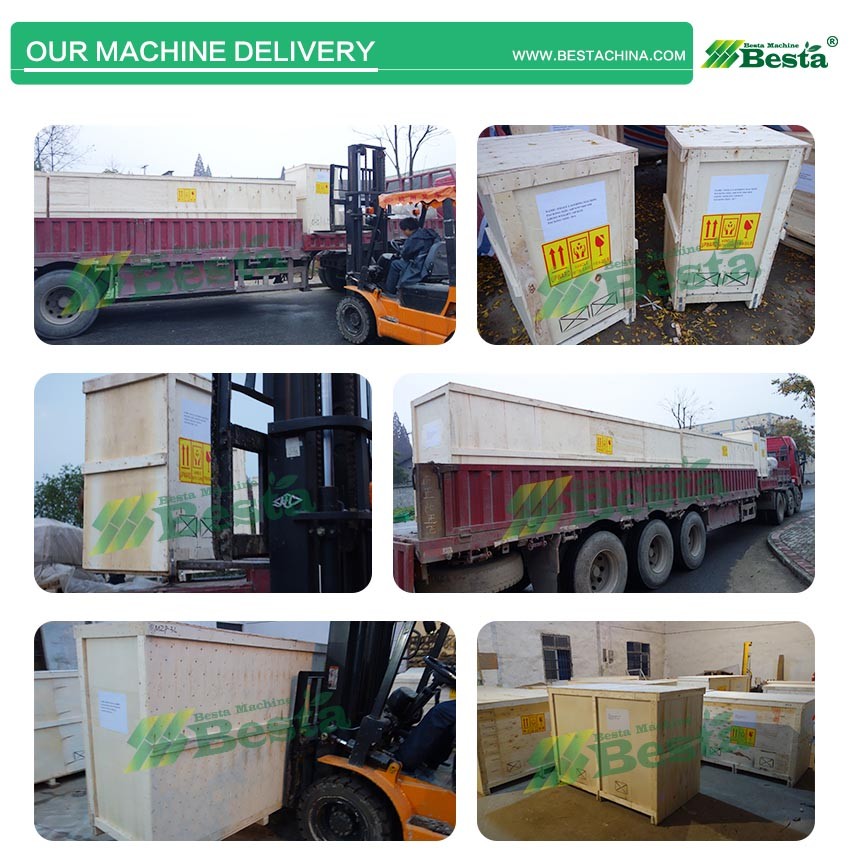

Our Machine Delivery Exported to Nigeria,Ghana,Ethiopia etc.
