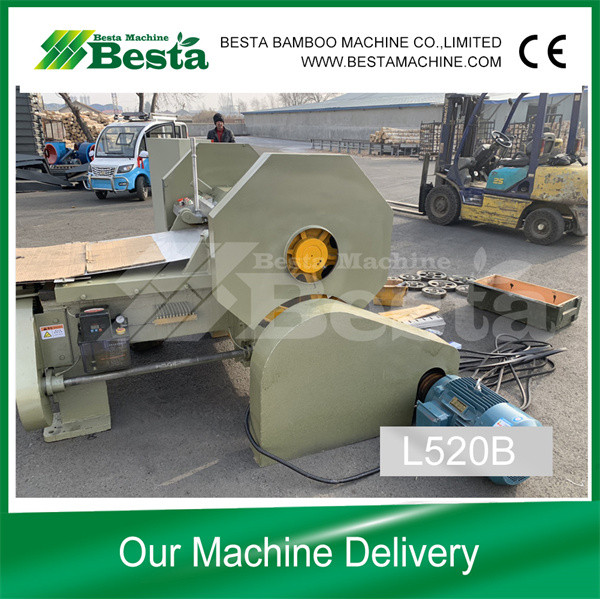

L520B Wood Rotary Cutting Machine, wood ice spoon making

L520B Wood Rotary Cutting Machine, wood ice spoon making

L520B Wood Rotary Cutting Machine, wood ice spoon making
L520B Wood Rotary Cutting Machine, wood ice spoon makingL520B Wood Rotary Cutting Machine, wood ice spoon makingL520B Wood Rotary Cutting Machine, wood ice spoon makingL520B Wood Rotary Cutting Machine, wood ice spoon makingL520B Wood Rotary Cutting Machine, wood ice spoon making
CategoriesWood rotary cutting machine
BrandBesta
ModelL520B
ModelL520
NameWood Rotary Cutting Machine
CapacityProcess about 2 cubic meter to 2.5 cubic meter wood per hour
PackingPlywood Case
Delivery timeWithin 20 days
Terms of PaymentT/T
Update Time2022/5/26
Detail Information

Ice cream stick production line, ice cream stick machine manufacturer, ice cream stick machine supplier in China.

World High Quality Machine Supplier.



Name: Heavy Wood Rotary Cutting Machine

Technical Data:

NO.

Product Description

 1

 Name

 Wood Rotary Cutting Machine

2

Model

L520

3

Brand

BESTA

4

Capacity

It can produce 2 to 2.5 cubic meter wood

Per hour. (High Speed)

5

Process Length

Max. 520mm. (regular blade: 480mm)

6

Main Axis Rotation Speed

240 R/MINUTE

7

Machine Size

2500MM*2400MM*1300MM

8

Machine Weight

2200 KGS

9

Precision Difference

0.05MM

10

Remarks

1 set of L520 machine needs 2 sets of

CCM-003C Carved Cutting Machine

11

Machine Origin

China

12

Application

Ice cream stick production line

Tongue depressor stick making machine

Ice spoon making machine

13

Output

It can produce about 460,000 PCS of 114mm ice

Cream stick per hour

Our Machine Advantage

For our rotary machine, we improved a lot. The Max. Diameter of the wood we can process is 780mm. while other company max. Diameter is about 330mm. our machine also have good stability, the precision difference is 0.05mm. While other company is about 0.15mm. The rotation speed of our machine can reach 240 R/MIN while other company’s machine is about 163 R/MIN

Usually, the blade we equipped for customer is for processing wood max.480mm  length processing.

Whole Production line (From wood-->dried ice-cream stick)

VIDEO LINK:

https://www.youtube.com/watch?v=Ewu1LddQplY

https://youtu.be/4whpwpPsVb8


Name: Heavy Wood Rotary Cutting Machine (CHINA BEST MACHINE MANUFACTURER)

Application: Wooden Ice cream stick making, tongue depressor stick

making machine, ice spoon making machine, coffee stirring stick making machine

Function: Making the wood into wooden veneer.





Before Using L520 Wood Rotary Cutting Machine, you shall do the boiling of the wood.

Different wood, the boiling method is different. We can provide both machines and technology of how to make

high quality wooden ice cream sticks. Abroad training service is available.








Complete Line of  ice Cream Stick Machine

The same production line can enable you to make,

(1) Wooden Ice cream stick  (ex. 93/114mm length stick)

(2) Tongue depressor stick (ex. 140mm/150mm/152mm tongue depressor stick)

(3) Coffee Stirring Stick (ex. 140mm coffee stirring stick)

(4) Ice spoon stick ( 75mm ice spoon stick)


Main Machine List :

1.AJD-2 Fully Automatic  Wood Cutting Machine

2. L520 Wood Rotary Cutting Machine (veneer making)

3. CCM-003C Carved Cutting Machine (shape forming)

4. PG-6-L Stick Polishing Machine  (drying and polishing)

5. BSM-010 Blade Grinding Machine (Magnetism type)

6. LS-114 Stick Order Arranging Machine

7. FX001-C Stick Quality Control Machine (selecting)

8. MQ-01S Chamfering Machine

9. MGCC-6 Dust removing and polishing machine (further polishing)

10. LY-1S Branding Machine (Logo printing Machine)

11. BDK114-V Bundling Machine

Other Auxiliary Equipment you will need

12. Heat Exchanger

13. Draught Fan

14. Steam Boiler (3tons)

15. Boiling tanks for wood boiling (locally made)

16. Forklift

For detailed machine technical data and each machine introduction, welcome to email us.

Machine Warranty: 1 year (do not include easily damaged parts)

Payment Terms: T/T In advance

Packing:Plywood Case

Delivery Time: Within 30 days after confirming the receipt of advance payment.
Engineer training service: Available. (charged service)













L520 WOOD ROTARY CUTTING MACHINE VIDEO

https://youtu.be/4whpwpPsVb8

    Ice Cream Stick Video Link (Welcome to visit)

Completeline of ice cream stick machine (From wood into finished ice

Creamstick)—HOT VIDEO (pls copy the link add & Visit)

https://www.youtube.com/watch?v=Ewu1LddQplY&t=36s



1.    Automatic Wood Cutting Machine (Advanced)

https://www.youtube.com/watch?v=2KyAT5kSA34

2.    L520 Wood Rotary Cutting Machine

https://www.youtube.com/watch?v=4whpwpPsVb8

3.    CCM-003C Carved Cutting Machine

https://www.youtube.com/watch?v=dISBDdOrsqU

4.    Ice Cream Stick Order Arranging Machine (LS-114)

https://www.youtube.com/watch?v=r-y8gkfZjC4

5.    Ice cream stick Chamfering Machine

https://www.youtube.com/watch?v=SitkOYlIfUE

6.    Magnum Ice Spoon Chamfering Machine

https://www.youtube.com/watch?v=lC-SmS-jE20

7.    Ice cream stick Individual Packing Machine

https://www.youtube.com/watch?v=JHVjbhOl7E4

8.    Ice Cream Stick Bundling Machine

https://www.youtube.com/watch?v=BH6KIogfHK0

9.    Tongue depressor stick selecting machine (quality control)

https://www.youtube.com/watch?v=GKEex24iS0s

10.  Ice cream stick Branding Machine, Logo Printing Machine

https://www.youtube.com/watch?v=67PcCx2lNDU


Welcome to email us for more detailed informations.

Email Address: info@bestachina.com

Contact Person: ANGEL ZHOU

www.bestachina.com

Complete Line of  ice Cream Stick Machine

The same production line can enable you to make,

(1) Wooden Ice cream stick  (ex. 93/114mm length stick)

(2) Tongue depressor stick (ex. 140mm/150mm/152mm tongue depressor stick)

(3) Coffee Stirring Stick (ex. 140mm coffee stirring stick)

(4) Ice spoon stick ( 75mm ice spoon stick)
