YD-3600 Newest Hydraulic Bamboo Flooring Making Machine, Strand Woven Beam Making Machine

YD-3600 Newest Hydraulic Bamboo Flooring Making Machine, Strand Woven Beam Making Machine

YD-3600 Newest Hydraulic Bamboo Flooring Making Machine, Strand Woven Beam Making Machine
YD-3600 Newest Hydraulic Bamboo Flooring Making Machine, Strand Woven Beam Making MachineYD-3600 Newest Hydraulic Bamboo Flooring Making Machine, Strand Woven Beam Making MachineYD-3600 Newest Hydraulic Bamboo Flooring Making Machine, Strand Woven Beam Making MachineYD-3600 Newest Hydraulic Bamboo Flooring Making Machine, Strand Woven Beam Making Machine
CategoriesBamboo Flooring Machine
AlbumView larger image
BrandBesta
ModelYD-3600
strand woven bamboo flooring machinebamboo furniture board machine
bamboo flooring linesstrand woven bamboo machines
FOB portShanghai
Terms of PaymentL/C, T/T
Update Time2019-06-18
Detail Information

World Best Strand Woven Bamboo Furniture Board Machine Supplier.

World Best Strand Woven Bamboo Flooring Making Machine Supplier.


MODEL: YD12-3600

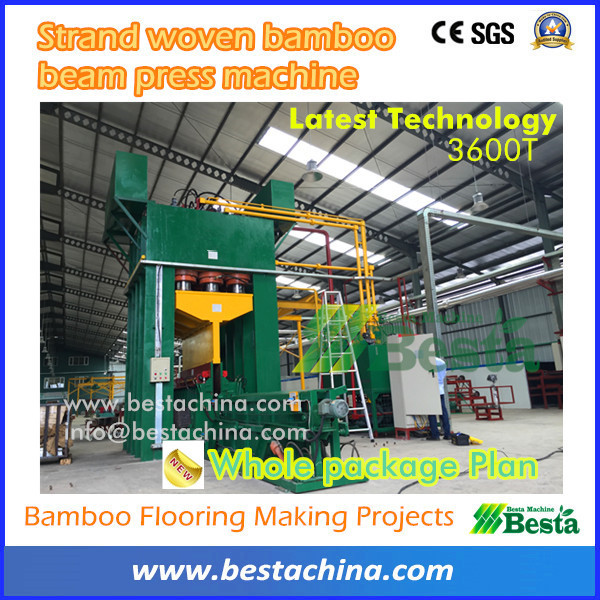

Strand Woven Bamboo Beam Press Machine, Oil Press Machine

MACHINE SIZE: 2550*2600*5500MM

Working Table Size: 2500*1500MM

Weight: 80 tons

Application: Making Stranded glued bamboo strip into

strand woven beam. (3500*140*143mm)

Type of Press: Oil hydraulic Press

Type of Oil Cylinder : 12 numbers of cylinder

Diameter of main oil pipe : 76*8mmm

Diameter of Cylinder : 380mm

Motor :  Two 30KW electric motor and one 5.5 KW motor

Main Oil Pump : two 160L plunger pumps

​Max. Pressure: 3500 Tons

Cylinder Stroke : 850MM

Electrical Control System: Mitsubishi PLC control systems.

Capacity: 500 PCS block/day per 20 hours.

KEY WORKD: Hydraulic Press/cold press/strand woven bamboo beam shape forming.


A complete set of Strand Woven Bamboo Flooring Machines ,
it is consisted by the following machines,
Primary Stage Machine for raw material preparation
  Bamboo Sawing Machine
  Bamboo Splitting Machine
  Slicing Machine and Stranding Machine
  Carbonizing Tank and Boiling Tank
  Drying Machine
  Glue Dipping Machine
Second Stage of Making Strip into strand woven bamboo furniture boards/block
Key Machines
a) Strip Drying Machine
b) Hydraulic Press Machine /Loading Machine/Unloading Machine/Blocks Moulds
c) Solidification Tunnel (Block Curing Machine
d) Cooling Machine
e) Block Mould Removing Machine
f) Two end cutting Machine
g) Side Trimming Machine of Strand woven beam.
h) Multi-blade Dissection Machine ( ex. making into 14mm thickness)
i) Sanding Machine
j) Balance Room
Flooring Moulding and Coating Lines
It is consisted by a series of four side planing machine, moulding of floorings, flooring
sanding/painting/package machine. You will get finished ready for selling floorings.

Our company Advantages

1.   Our machines have the best quality all over the world. Our strand woven bamboo production lines are used more than 45 factories.

The sales of Strand woven bamboo flooring which are made by our production line isabout 0.3 billion every year.

Our newest product line can work normally without repairing for more than one year.


2.   Our strand woven bamboo machines and technology is the best.

We are the first company who makes the strand woven bamboo flooring and develops the market.

We have set up  more than 45 factories in different area in china and foreign countries. We try to make the strand woven bamboo using

different kinds of bamboo and in different areas. So we have rich experiences.

The strand woven bamboo products which are made by our production line and technology can meet

industry standards and export standards. We also join in making the industry standards.


3.   We provide good service. We provide the machines, the detailed plan of the Strand woven bamboo flooring product line.

(including machines list, Factory design,machines layout drawing and all the things you should prepare),processes and technology,

training and good after selling service.
