BBQ Stick (Skewer ) Selecting Machine, quality control machines (new)

BBQ Stick (Skewer ) Selecting Machine, quality control machines (new)
Issue Time:2018-07-01

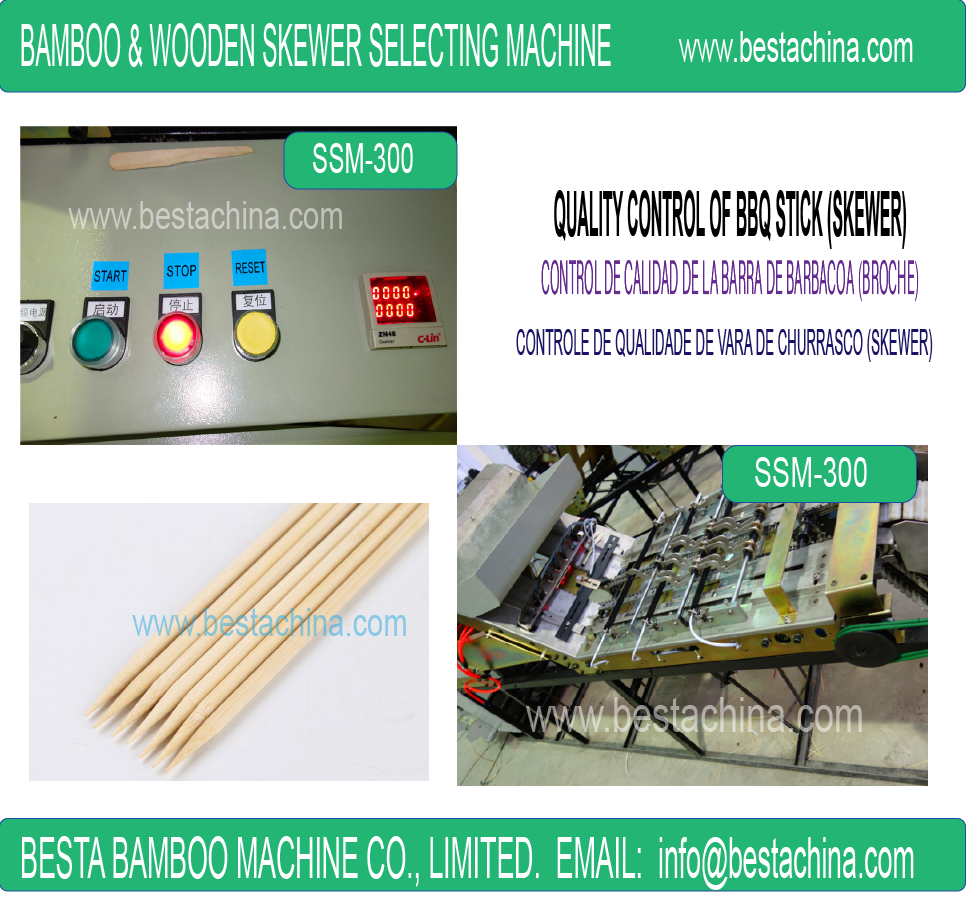

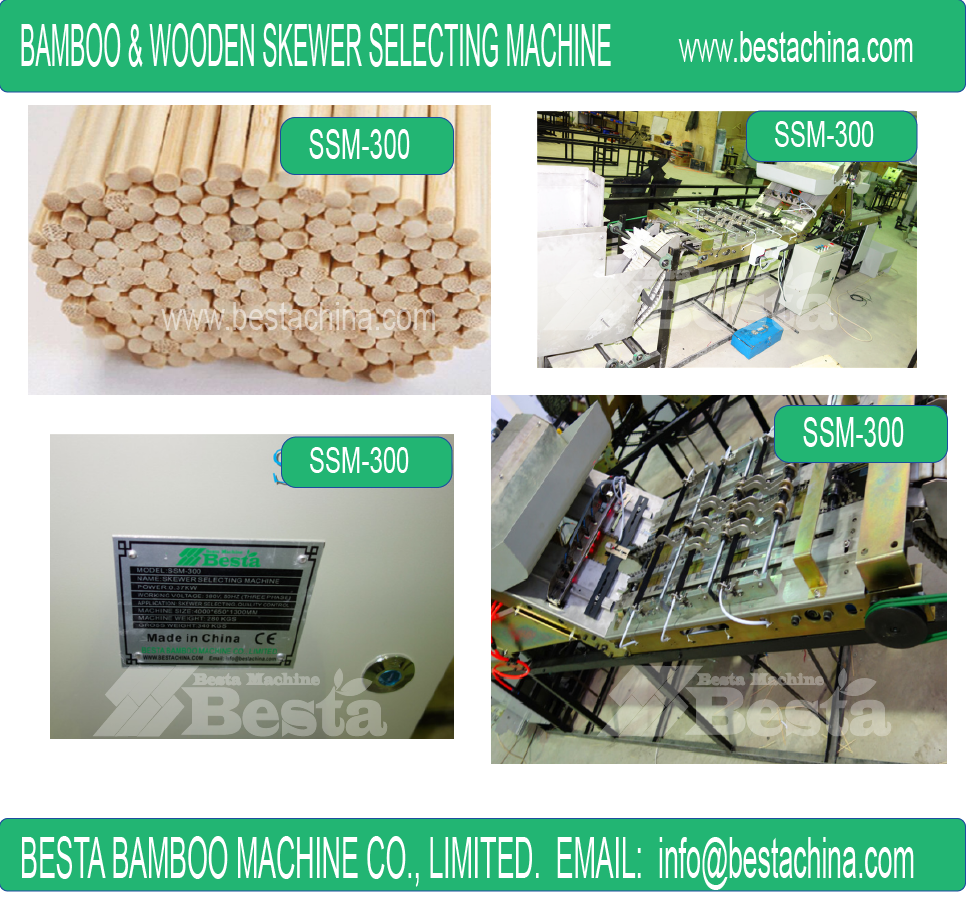

SSM-300 BBQ STICK SELECTING MACHINE, STICK SELECTING MACHINE

QUALITY CONTROL OF THE STICKS


Model

SSM-300

BBQ Stick Selecting Machine

Quality control of machine

Machine Power

0.37 KW

Working Voltage

380V, 50HZ

Machine Size

4200*600*1300MM

Packing Size

4300*900*1500MM

TOTAL CBM

5.8 M3

Selecting Speed

About 50,000 PCS PER HOUR

Machine Weight

500 KGS

Gross Weight

600KGS

Function : Can selecting the bent/short ones/broken ones/black color

Electrical Parts Brand:

PLC: SIEMENS

Optical Fiber: Keyence

Electrical Small Parts: OMRON

Solenoid valve: Mac

Transducer: Delta



For selecting: There are 3 solenoid valves,

the bent ones will be put in one holder

the short ones and the broken ones will be put in one holder

the color problem/black color ones will be put in one holder.

This machine can detect the black color problem. For slightly color difference, it could not.

Remarks:

You can set the data in the machine. For example the diameter range

you need and also length range, it is easy for operation.

For example: If you think 3.0mm to 3.3mm diameter, length: 200 to 205mm is acceptable,

so, the STICK which did not meet this need, will be selected out.

By the way, this machine can select the short one out. If your stick is longer than the data you

 have set, it could not be selected out.

This machine shall be used with AIR COMPRESSOR.

You shall buy a compressor locally. (ex. 3KW ) and connect to the machine.

If it is 3KW, it can supply 2 to 3 sets of machine using.  The air compressor is not in our quotations.
