BAMBOO THIN STRIP WEAVING MACHINE

BAMBOO THIN STRIP WEAVING MACHINE
Issue Time:2017-09-30

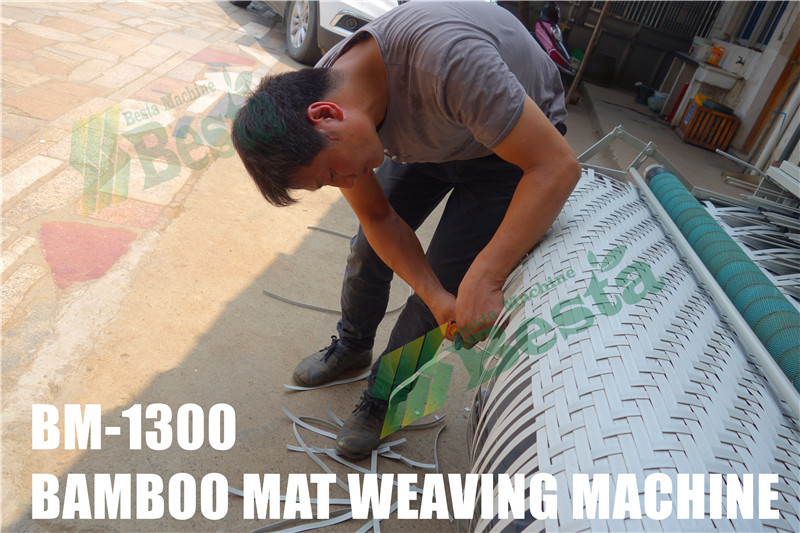

BAMBOO MAT WEAVING MACHINE (BM-1300)

TECHNICAL DATA :

MODEL: BM-1300

Name: Bamboo Mat Weaving Machine

Brand: BESTA

Application:Bamboo plyboard making (for constructions purpose)

POWER: 0.75 KW(220V, 50HZ ) SINGLE PHASE)

MAX. SEWING WIDTH:1300MM

PROCESSING THICKNESS: 0.5 TO 1.5MM

THE QTY. OF FEEDING : 48 PCS

MACHINE SIZE:1970*830*1060MM

MACHINE WEIGHT :200 KGS

THE RAW MATERIAL YOU SHALL USE IS BAMBOO STRIP.

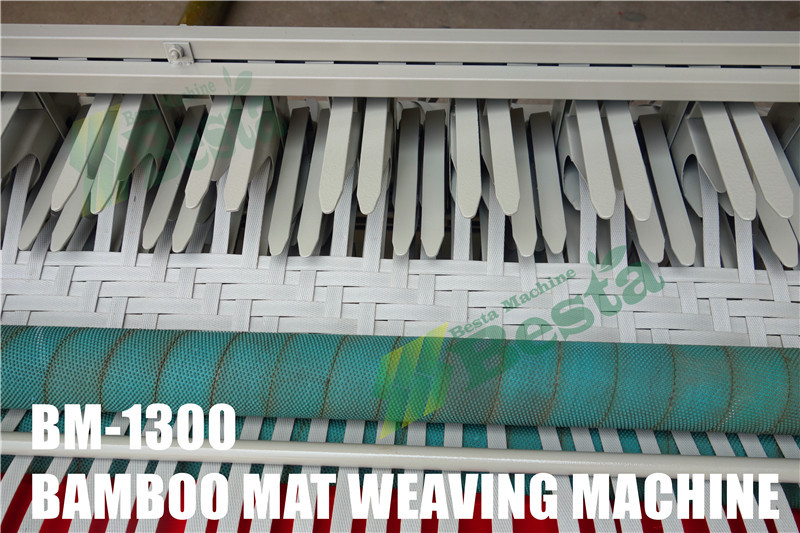

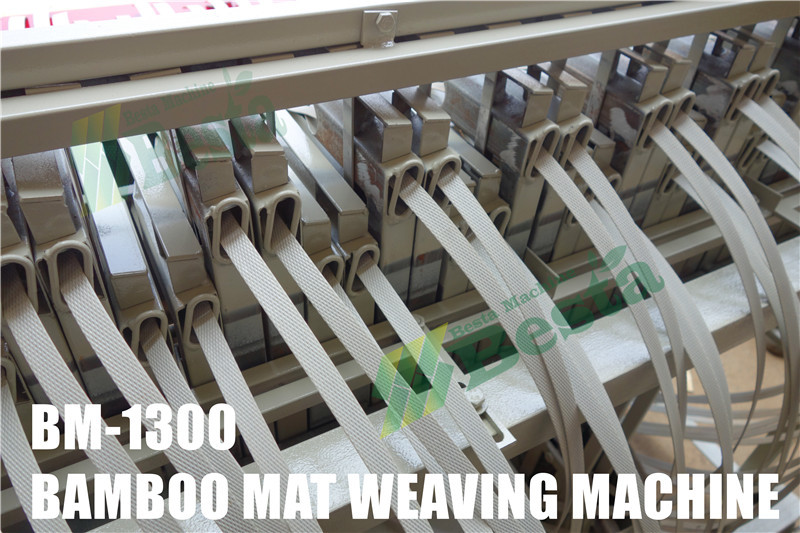

In the following machines, it is using plastic strip for a te

sting purpose.

In production, you shall feed thin bamboo strips.
